Product Description

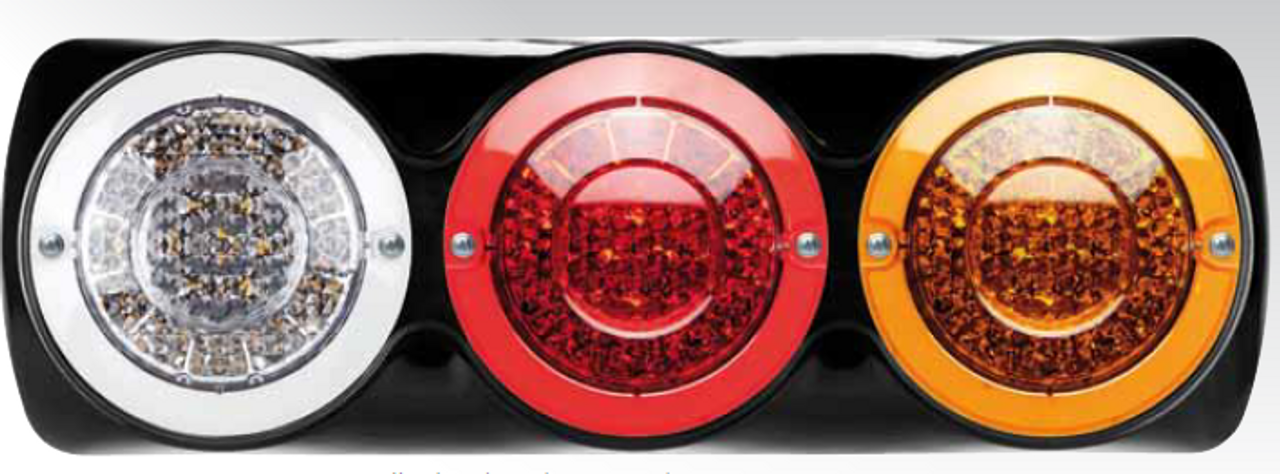

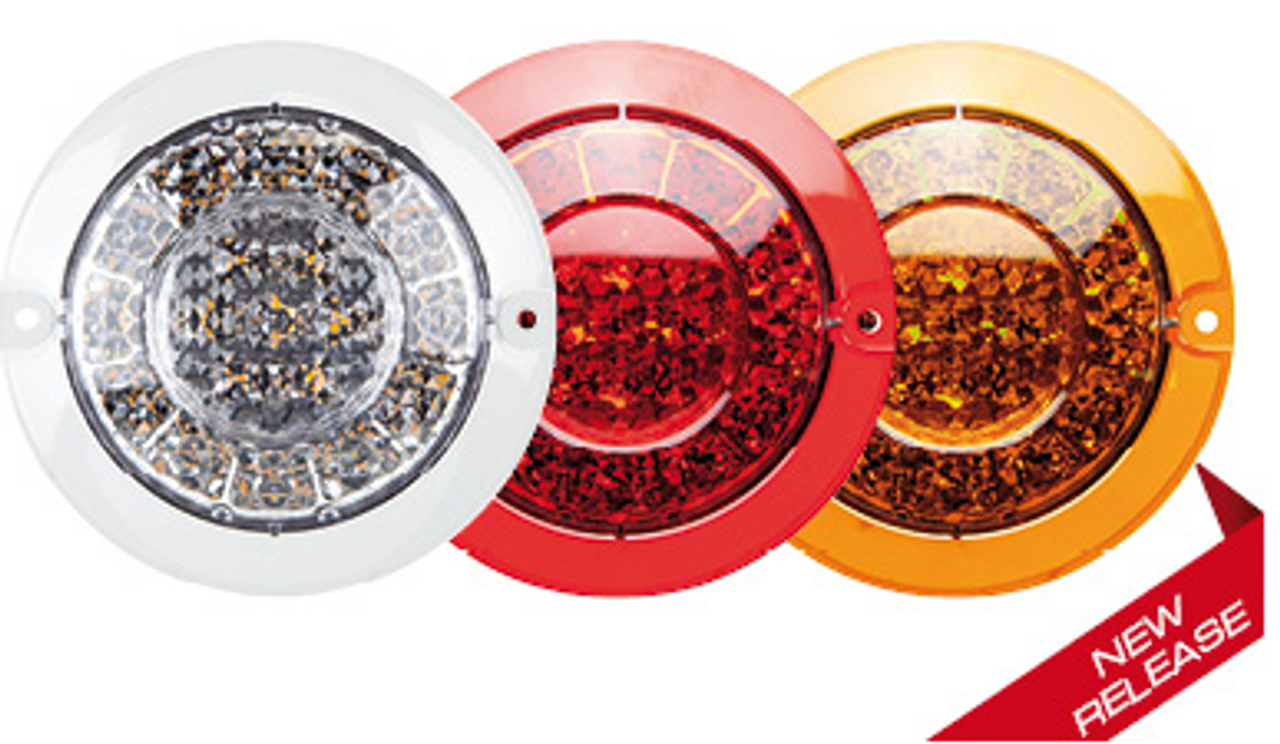

BR170 Series round LED signal lamps are a versatile stand alone or combination lamp solution!NEW RELEASE !!!!!!!!!!Stop, Tail, Indicator & Reverse LED Light with Black Mounting Base - Reflector in Red LensWith the ROADVISION BR170 Series, it’s FIT and FORGET.- Multi-volt 10-30V DC input & low current draw
- Brighter than conventional incandescent systems
- 100,000 hour LED life span with solid state technology
- Maintenance free
- Sealed polycarbonate lens & housing
- Water and dust proof
- Supplied pre-wired with 300mm of sheathed tinned copper cable
- Surface mount design
- Retro reflector integrated into BR170RR
- Available in clear or coloured lenses
- ADR/ECE approved for all functions
- 5 year warranty
|
|
BR170ARWB |
| Input Voltage | 10-30 Volt DC |
| Lamp Functions | Stop, Tail, Indicator, Reverse & Reflector |
| Lens Colour | Red, Amber, Clear. Black Base |
| No. of LED's | 19 LED's |
| Current Draw Amps | 0.05 Amps/ 0.05 Amps @ 13.8V DC |
| Housing Construction | Polycarbonate |
| Lens Construction | Polycarbonate |

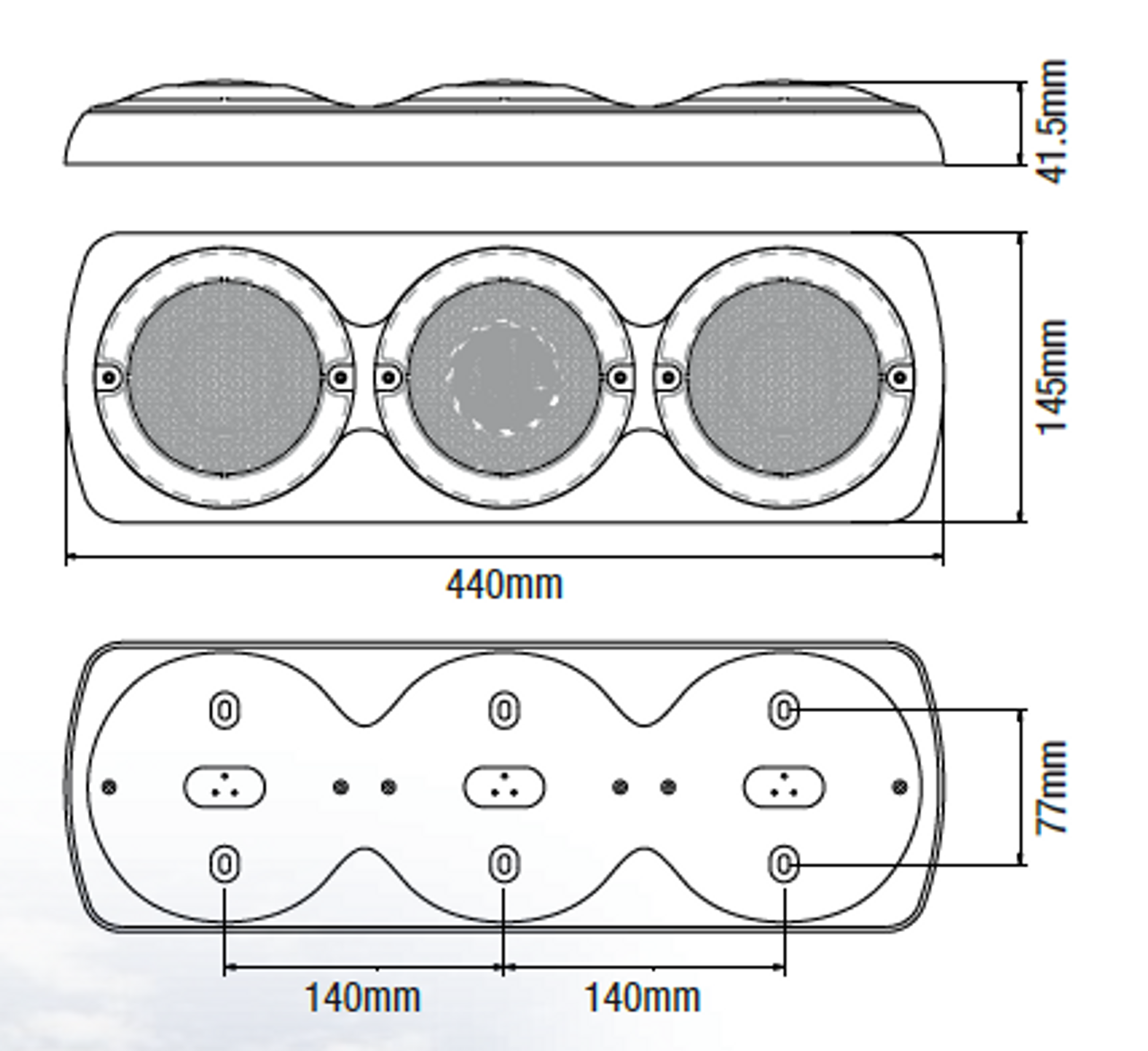

| Dimensions | 440 x 145 x 42mm |
| Mounting Type | Surface Mount |
| Mounting Hole Cut Out | 144 x 144 x 77mm |
| Cable Length | 300mm Tinned Copper |
| Approvals | Stop- CRN 46760 |
|
Tail- CRN 46761 Ref - ECE E4-3R-023490 |
