Product Description

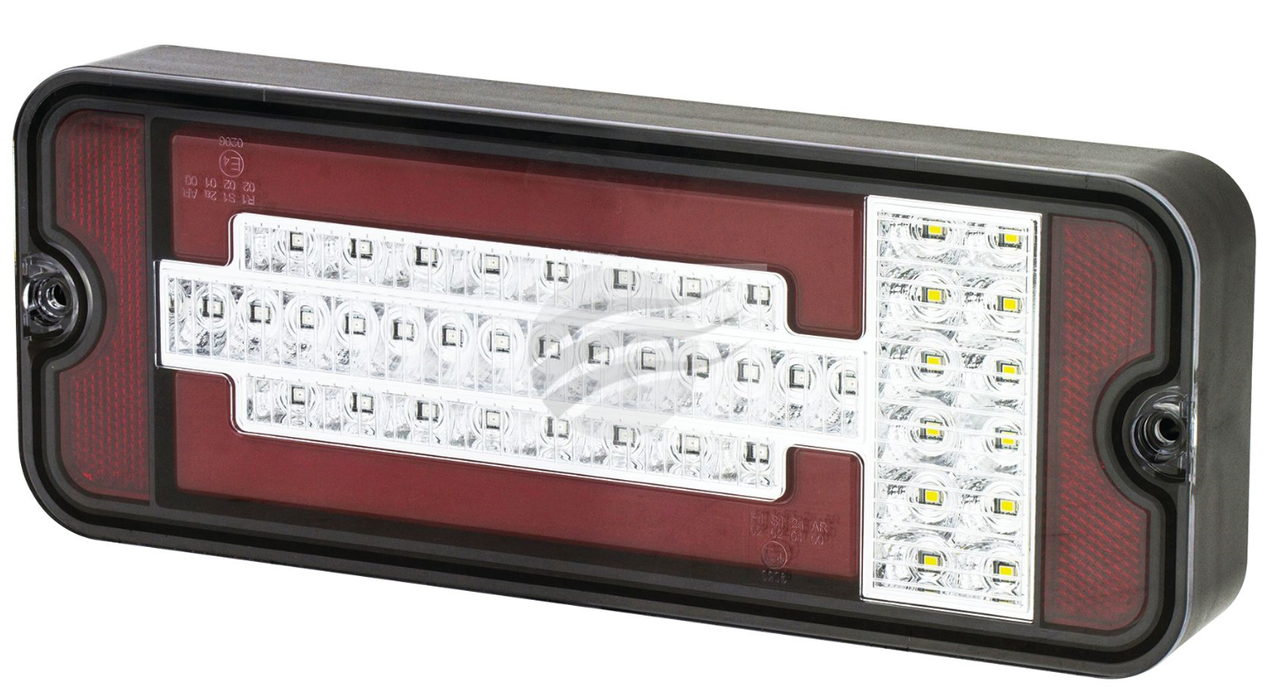

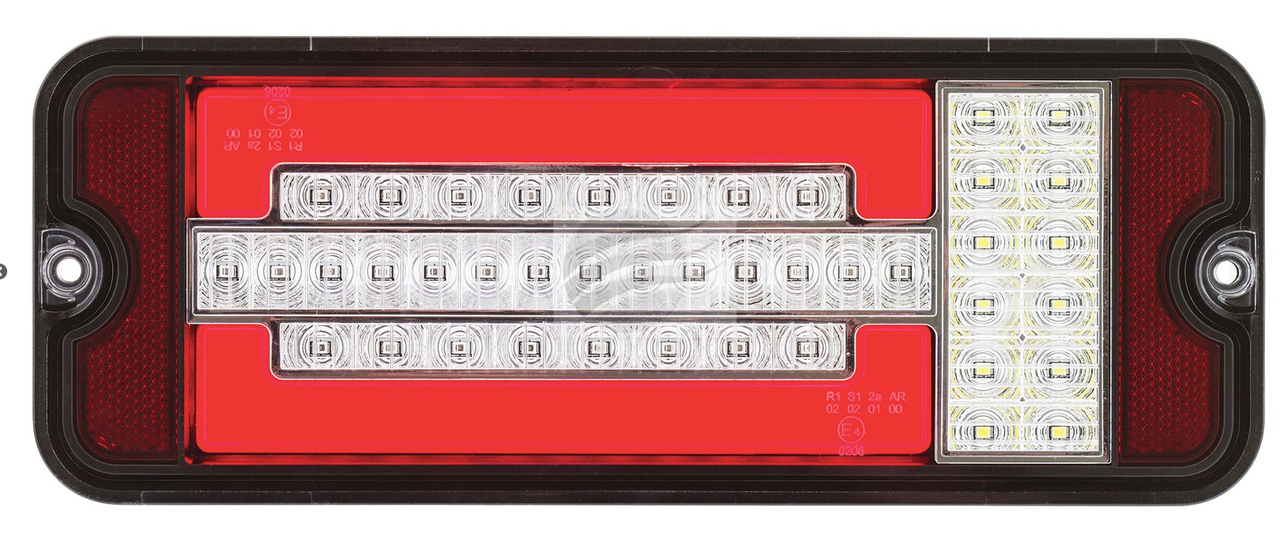

Stop, Tail, Indicator, Reverse Light with Reflector and Sequential Indicator and Zeon Tail Light. Multi-volt 12-24v. Looking for something different that will stand out on your vehicle? Look no further this light not only has a sequential indicator but also has the new Zeon technology which creates a glow in your lights. This light also has a super bright reverse light that will out shine all combination tail lights fitted with a reverse light function. You will be impressed.ISL500RAW.Sold in Single Pack.Part Number | ISL500RAW |
Function | Stop/ Tail/ Indicator/ Reverse / Reflector |
Voltage | 12-24v DC |
Amp Draw | Stop 0.35a @12v, 0.19a @24v Tail 0.02a @ 12v, 0.02a @ 24v Indicator 0.48a @ 12v, 0.28a @ 24vReverse 0.40a @ 12v, 0.21a @ 24v |
Lens Colour | Red, Clear |
LED Colour | Amber, Red, White |
LED No's | 26 x High Intensity Red SMD19 x High Intensity Amber SMD 12 x High Intensity white SMD |
Dimension | 290mm x 110mm x 40mm |
Warranty | 5 Year Warranty |
Wiring | 400mm Sheathed with 5 wires. |
Lights per Pack | 1 |
Water Rating | IP67 |
ADR |
ECE Approved all functions |
Fitting Instructions
A Load Resistor may be required for your IndicatorPart No: BR12Link: https://ultimateledlights.com.au/accessories/load-resistor-12-volt-twin-pack-br12/
