Combination Tail Light. Large Tray & Truck Series Light. Diffused Tail Function. Coloured Lens. Stop, Tail, Indicator and Reverse Lights. Caravan Friendly. Single Pack. Multi-Volt 12v & 24v. 595BARWM.

Autolamps

$310.00

or make 4 interest-free payments of $77.50 AUD fortnightly with More info

New and Modern Combination Tail Lights.

Stop, Tail, Indicator and Reverse.

Large Truck / Trailer.

Diffused Tail Function.

Caravan Friendly.

Bolt on Fitting.

Autolamps.

595BARWM.

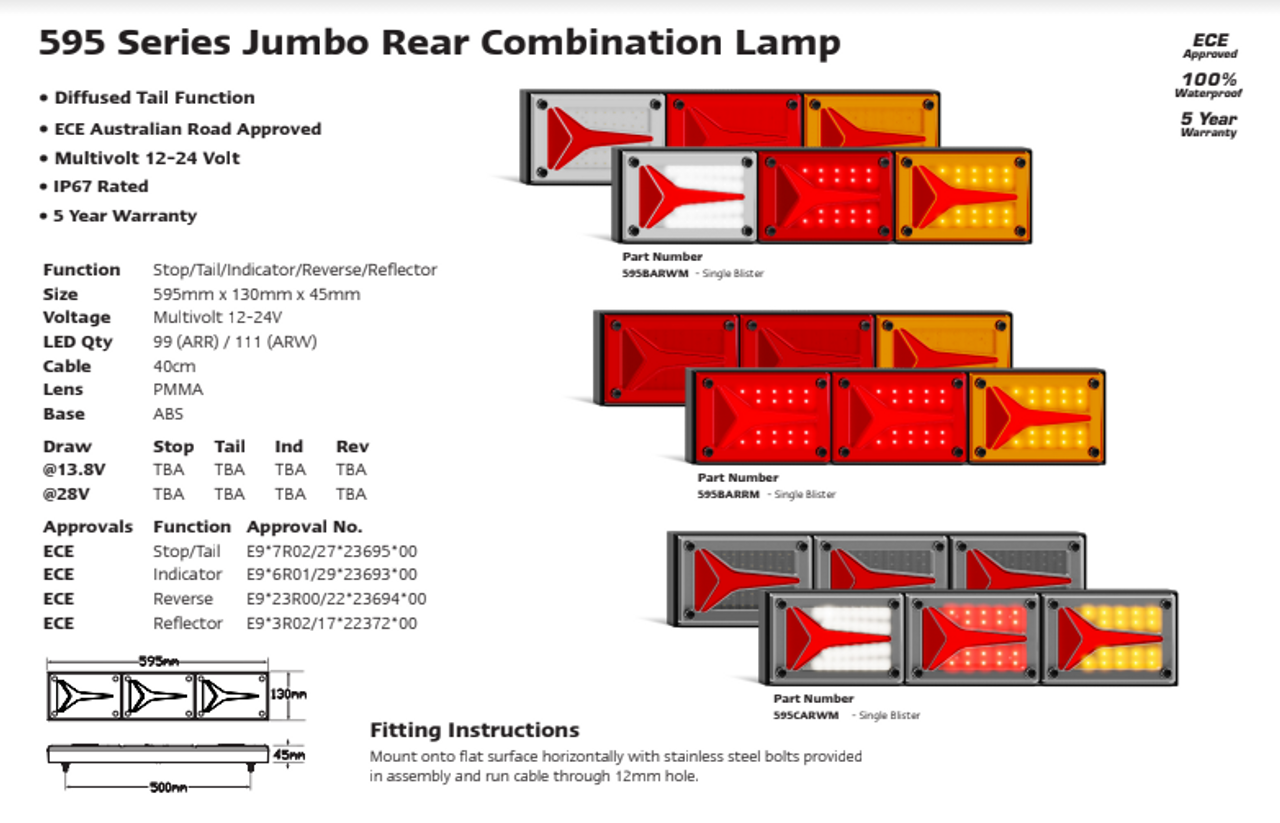

Specifications	595BARWM
Input Voltage	12v & 24 Volt DC
Lamp Functions	Stop, Tail, Indicator Reverse
Lens Colour	Red, Amber & Clear
No. of LED's	72
Current Draw Amps	Stop - 0.47a @ 12v, 0.27a @ 24v Tail - 0.04a @ 12v, 0.03a @ 24v Ind - 0.42a @ 12v, 0.28a @ 24v Rev - 0.18a @ 12v, 0.11a @ 24v
Dimensions	595 x 130 x 45mm
Mounting Type	Bolt fitting

Cable Length	1.2m
Warranty	5 Year
Approvals	TBA

A Load Resistor may be required for your Indicator

Part No: BR12

Fitting Instructions

Surface mount onto flat surface horizontally with bracket and run cable through hole in mounting surface.

Please refer to ADR 13/00.
