  • 520ARWM-2 - Combination Tail Light. Large Tray & Truck Series Light. Diffused Tail Function. Sequential Indicator. Clear Lens. Stop, Tail, Indicator and Reverse Lights. Twin Pack. Multi-Volt 12v & 24v. Autolamp. Ultimate LED.
  • 520ARWM-2 - Combination Tail Light. Large Tray & Truck Series Light. Diffused Tail Function. Sequential Indicator. Clear Lens. Stop, Tail, Indicator and Reverse Lights. Twin Pack. Multi-Volt 12v & 24v. Autolamp. Ultimate LED.

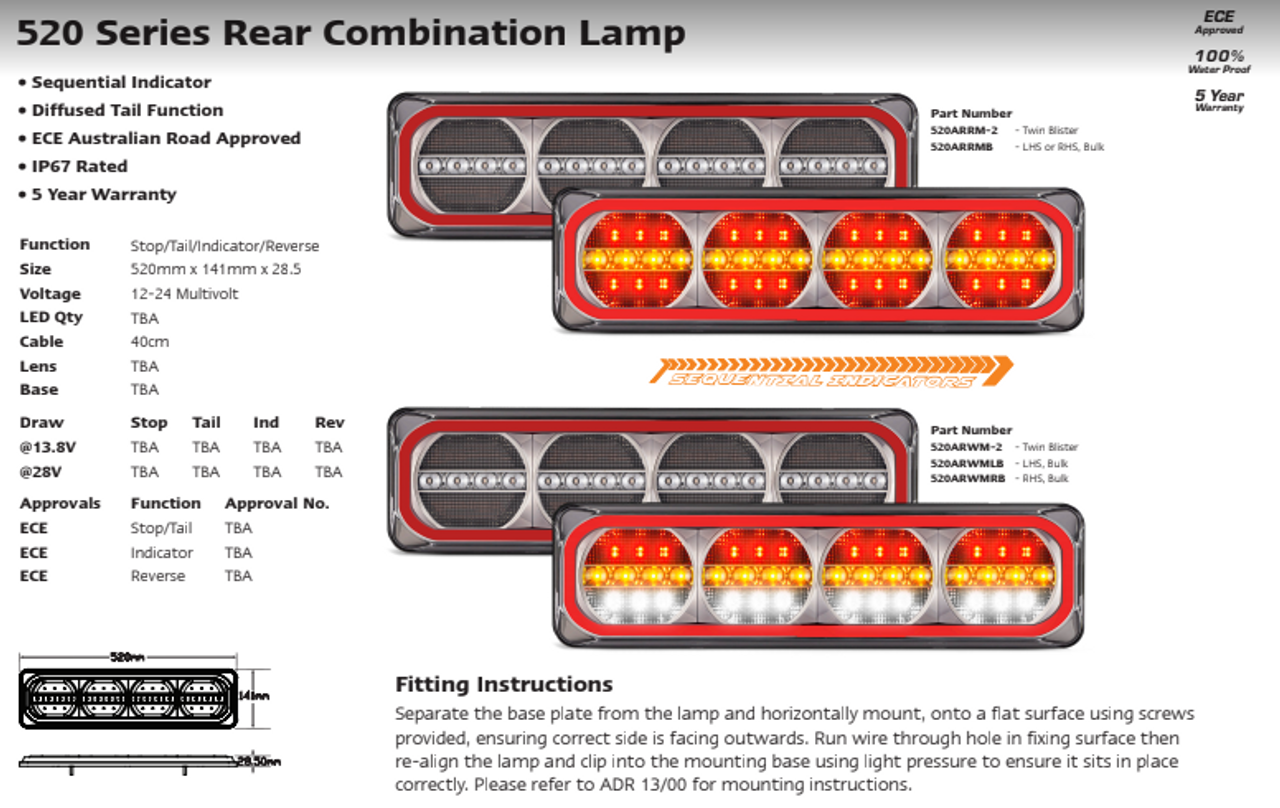

  • Data Sheet - 520ARWM-2 - Combination Tail Light. Large Tray & Truck Series Light. Diffused Tail Function. Sequential Indicator. Clear Lens. Stop, Tail, Indicator and Reverse Lights. Twin Pack. Multi-Volt 12v & 24v. Autolamp. Ultimate LED.

    • Combination Tail Light. Large Tray & Truck Series Light. Diffused Tail Function. Sequential Indicator. Clear Lens. Stop, Tail, Indicator and Reverse Lights. Twin Pack. Multi-Volt 12v & 24v. Autolamp. 520ARWM-2.

    $620.00

    or make 4 interest-free payments of $155.00 AUD fortnightly with Afterpay More info

    SKU:
    520ARWM-2-LR
    Shipping:
    Calculated at Checkout

    Product Description

    Combination Tail Lights.
    Twin Pack. Left x 1 and Right x 1 Plus Load Resistors - 12v x 2
    Stop, Tail, Indicator and Reverse.
    Large Truck / Trailer.
    Caravan Friendly
    Diffused Tail Function.
    Sequential Indicator.
    Bracket Mount, Clip on Lamp.
    5 Year Warranty.
    ADR Approved.
    Autolamps.
    520ARWM-2.
    Specifications
    		 520ARWM-2-LR
    Input Voltage
    12v & 24 Volt DC
    Lamp Functions
    Stop, Tail, Indicator
    Lens Colour
    Clear


    Current Draw Amps
    Stop - 0.4a
    Tail - 0.15a
    Ind - 0.4a
    Rev - 0.4a
    Dimensions
    520 x 141 x 28.5mm
    Mounting Type
    Bracket Mount


    Cable Length
    40cm
    Warranty
    5 Year
    Approvals
    Stop/Tail E9*7R02/27*23588*00
    Indicator E9*6R01/29*23588*00
    Reverse E9*23R00/22*23588*00
    Fitting Instructions
    Separate the base plate from the lamp and horizontally mount, onto a flat surface using screws provided, ensuring correct side is facing outwards. Run wire through hole in fixing surface then re-align the lamp and clip into the mounting base using light pressure to ensure it sits in place correctly. Please refer to ADR 13/00 for mounting instructions.
