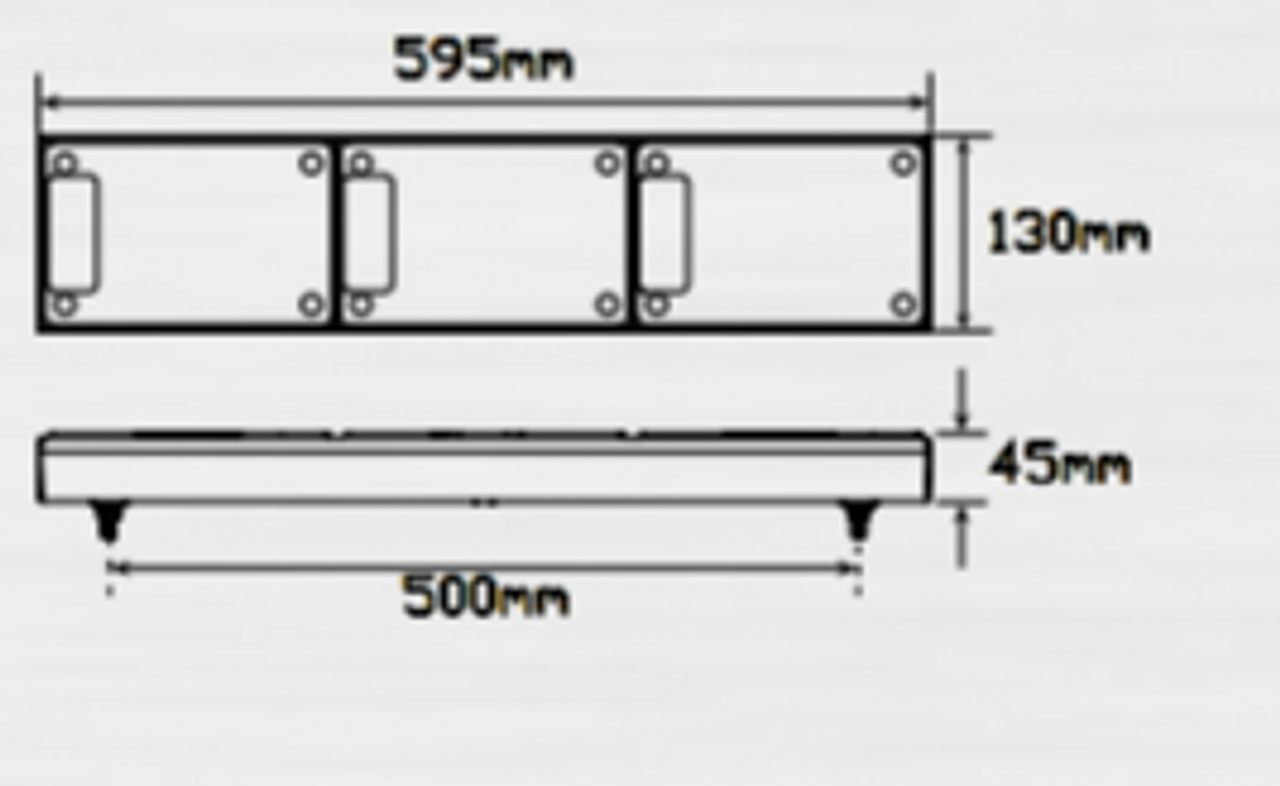

Line Drawing - J3BARWM - Jumbo Tail Lights, Stop, Tail, Indicator, Reverse Light with Reflectors Multi-Volt 12v & 24v. Caravan Friendly. Blister Single Pack. LED Auto Lamps. Ultimate LED.

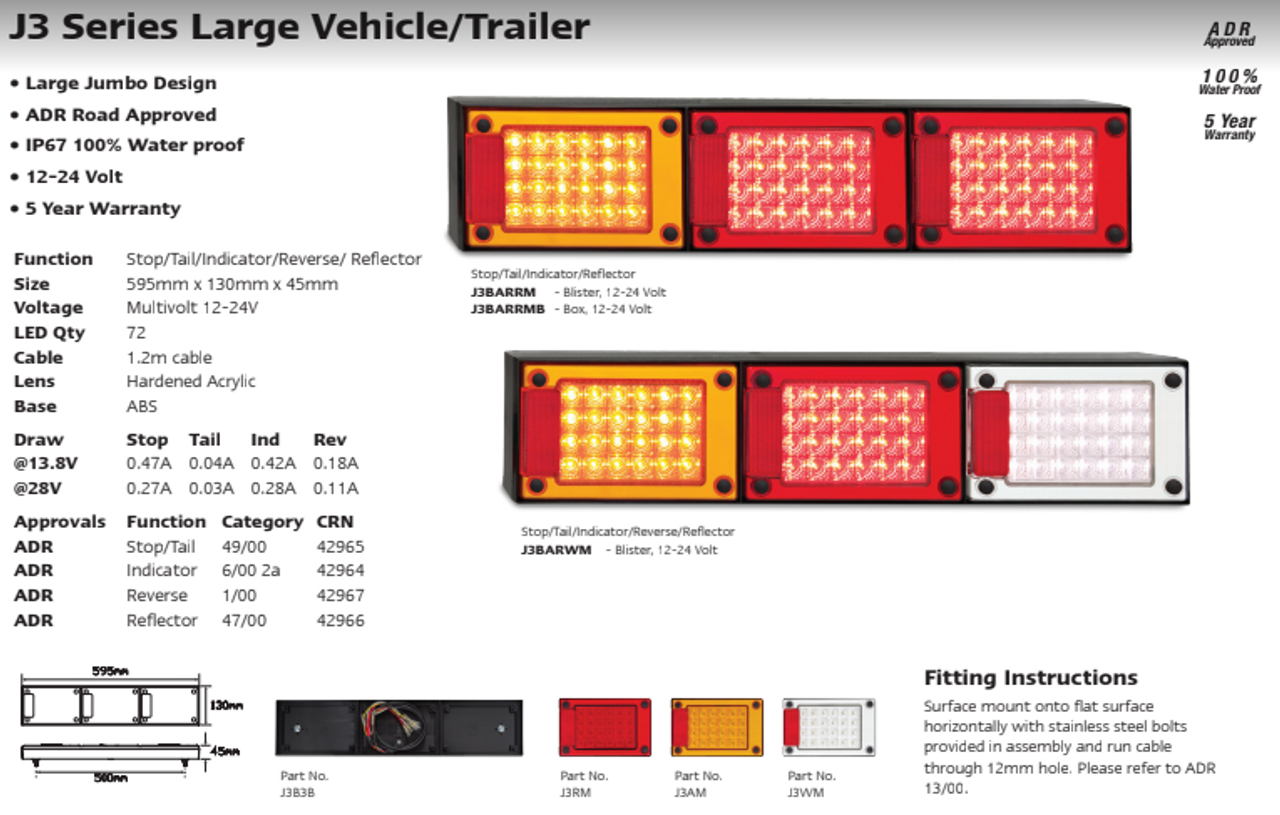

Data Sheet - J3BARWM - Jumbo Tail Lights, Stop, Tail, Indicator, Reverse Light with Reflectors Multi-Volt 12v & 24v. Caravan Friendly. Blister Single Pack. LED Auto Lamps. Ultimate LED.

Jumbo Tail Lights, Stop, Tail, Indicator, Reverse Light with Reflectors Multi-Volt 12v & 24v. Caravan Friendly. Blister Single Pack. LED Auto Lamps J3BARWM. ADR Approved.

Autolamps

$289.00

or make 4 interest-free payments of $72.25 AUD fortnightly with More info

SKU:: J3BARWM
Shipping:: Calculated at Checkout

Overview

Product Description

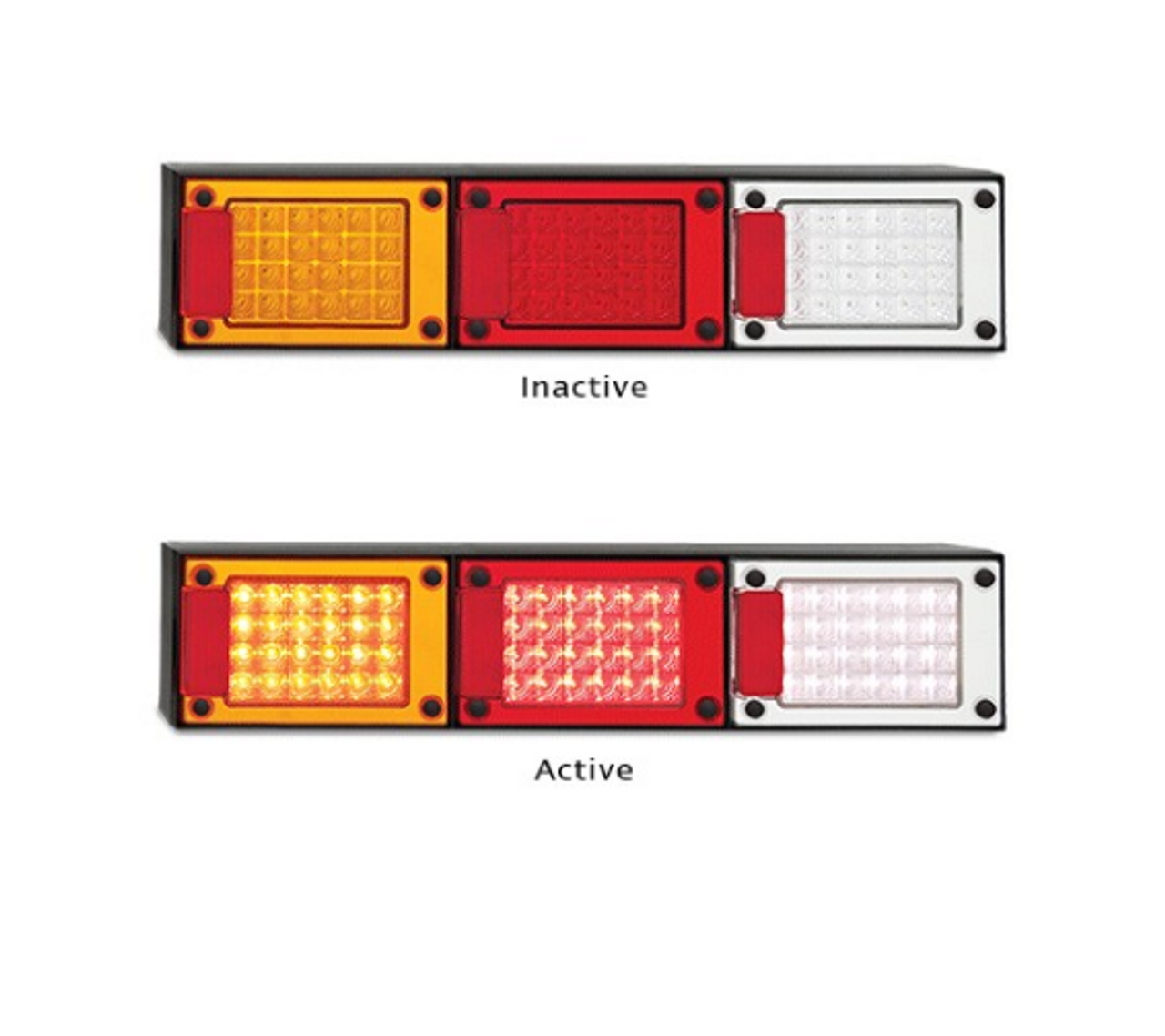

Jumbo Tail Light Combination.

Stop, Tail, Indicator, Reverse Light with Reflectors.

Caravan Friendly.

Amber, Red, White LED Lights.

ADR Approved.

5 Year Warranty.

Multi-Volt 12v & 24v.

LED Auto Lamps.

J3ARWM.

Single Pack.

Part Number	J3ARWM
Function	Stop, Tail, Indicator, Reflector, Reverse
Voltage	12-24v DC
Amp Draw	Stop 0.47a @ 13.8v, 0.27a @ 28v Tail 0.04a @ 13.8v, 0.03a @ 28v Indicator 0.42a @13.8v, 0.28a @ 28v Reverse 0.18a @13.8v, 0.11a @ 28v
Lens Colour	Amber, Red, Clear
LED Colour	Amber, Red, White
LED No's	72
Dimension	595 x 130 x 45mm
Warranty	5 year
Wiring	40cm
Lights per Pack	1
Water Rating	IP67
ADR	Stop, Tail CRN 42965 Indicator CRN 42965 Reflector CRN 42966 Reverse CRN 42967

Fitting – Surface Mount

A Load Resistor may be required for your Indicator

Part No: BR12 Link: https://ultimateledlights.com.au/accessories/load-resistor-12-volt-twin-pack-br12
