Product Description

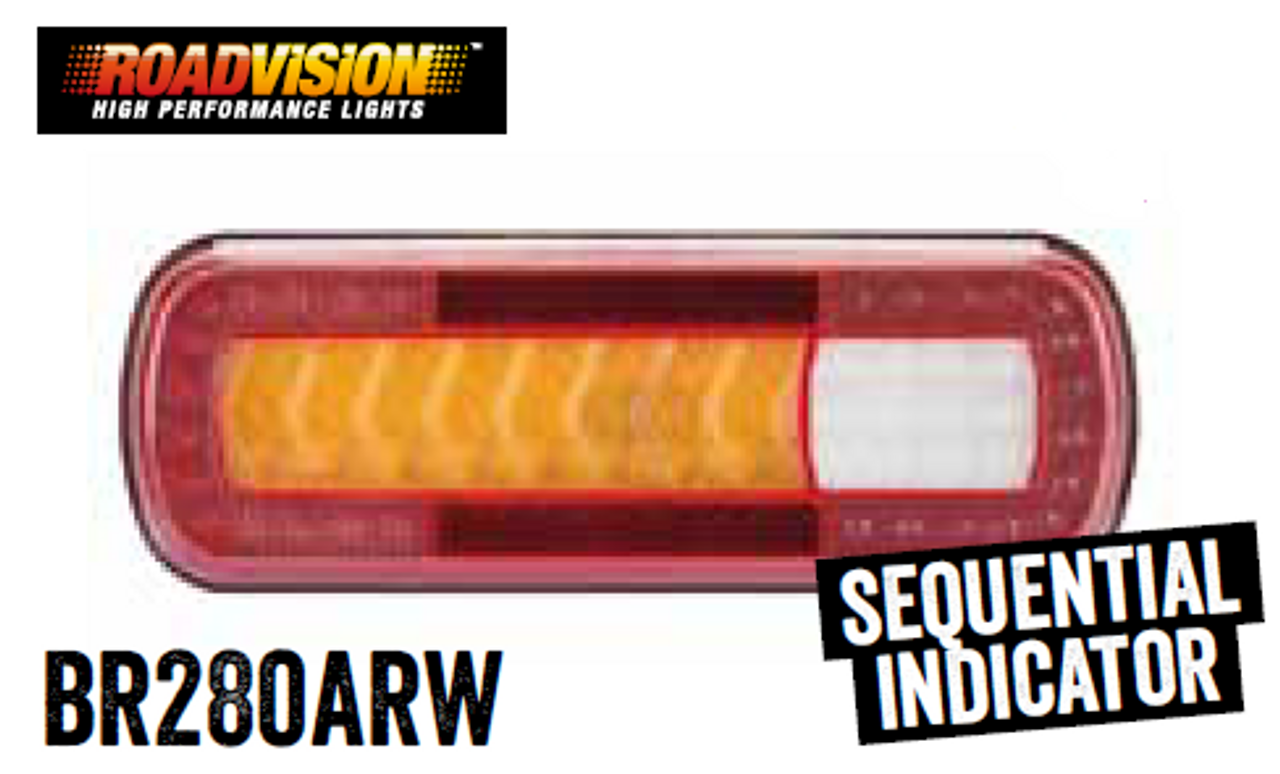

NEW PRODUCT* LED Combination Lamp Stop Tail Indicator Reverse. Sequential Indicator Function. Multi-volt.Modern Sequential Indicator Function.Single Pack.BR280ARW.- Multi-volt 10-30V DC input & low current draw
- Sequential indicator function
- Brighter than conventional incandescent systems
- 100,000 hour LED life span with solid state technology
- Maintenance free
- Sealed polycarbonate lens & housing
- IP67 water and dust proof - Submersible to 1 Metre
- Pre-wired with 500mm of sheathed tinned copper cable
- Simple surface mount or twin bolt mount design
- Retro reflector integrated into lens
- ADR/ECE approved for all functions
BR280ARW | |
Input Voltage | 10-30 Volt DC |
Lamp Functions | Stop/Tail/Indicator/Reverse/Reflector |
No. of LED's | Indicator - 24 LED's, Stop/Tail - 14 LED's, Reverse - 12 LED's Fog - 14 LED's |
Current Draw Amps | Ind - 0.2a @ 13.8vStop/Tail - 0.2/0.05a @ 13.8vRev - 0.2a @ 13.8vFog - 0.3a @ 13.8v |
Housing Construction | Polycarbonate |
Lens Construction | Polycarbonate |
Dimensions | 283x100x29mm |
Mounting Depth | Surface Mount |
Mounting Hole/Cut Out | 116mm |
Cable Length | 500mm Sheathed |
IP Rating | IP67 |
Warranty | 5 Years |
