Product Description
Combination LED Tail Light Kit - Twin Pack (Pair) 12V Systems.- Compact LED combination lamp
- 12V DC input & low current draw
- Brighter than conventional incandescent systems
- 100,000 hour LED life span with solid state technology
- Maintenance free
- High impact ABS housing & sealed polycarbonate lens
- Water and dust proof
- Pre-wired with 300mm of sheathed tinned copper cable
- Available in a DIY twin pack
- Simple surface mount design
- ADR/ECE approved for all functions
BR205LR | |
Input Voltage | 12 Volt DC |
Lamp Functions | Stop, Tail, Indicator, Reflector |
No. of LED's | Ind - 7 LED's, S/T - 7 LED's |
Current Draw Amps | Ind - 0.1A, S/T - 0.1/0.05A @ 13.8V |
Housing Construction | High Impact ABS |
Lens Construction | Polycarbonate |

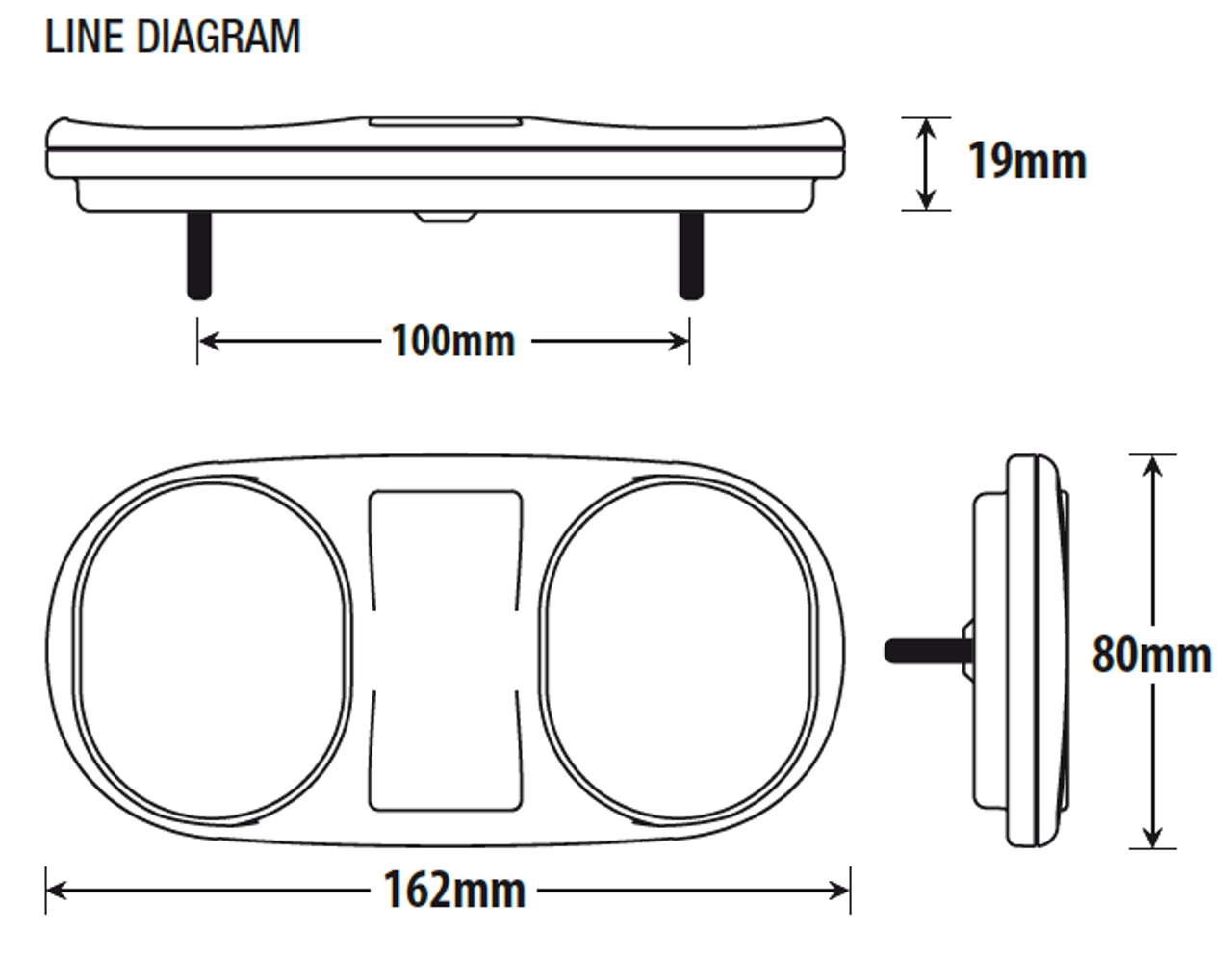

Dimensions | 162 x 80 x 26mm |
Mounting Depth | Surface Mount |
Mounting Hole/Cut Out | 100mm |
Cable Length | 300mm Sheathed |
IP Rating | Weather Resistant |
Warranty | 5 Years |
Approvals | Ind - E4-6R-0114730, S/T - E4-7R-0214730,Ref - E4-3R-023417 |
Notes | Twin Pack |
Fitting – Surface Mount
A Load Resistor may be required for your IndicatorPart No: BR12 Link: https://ultimateledlights.com.au/accessories/load-resistor-12-volt-twin-pack-br12/
