Product Description

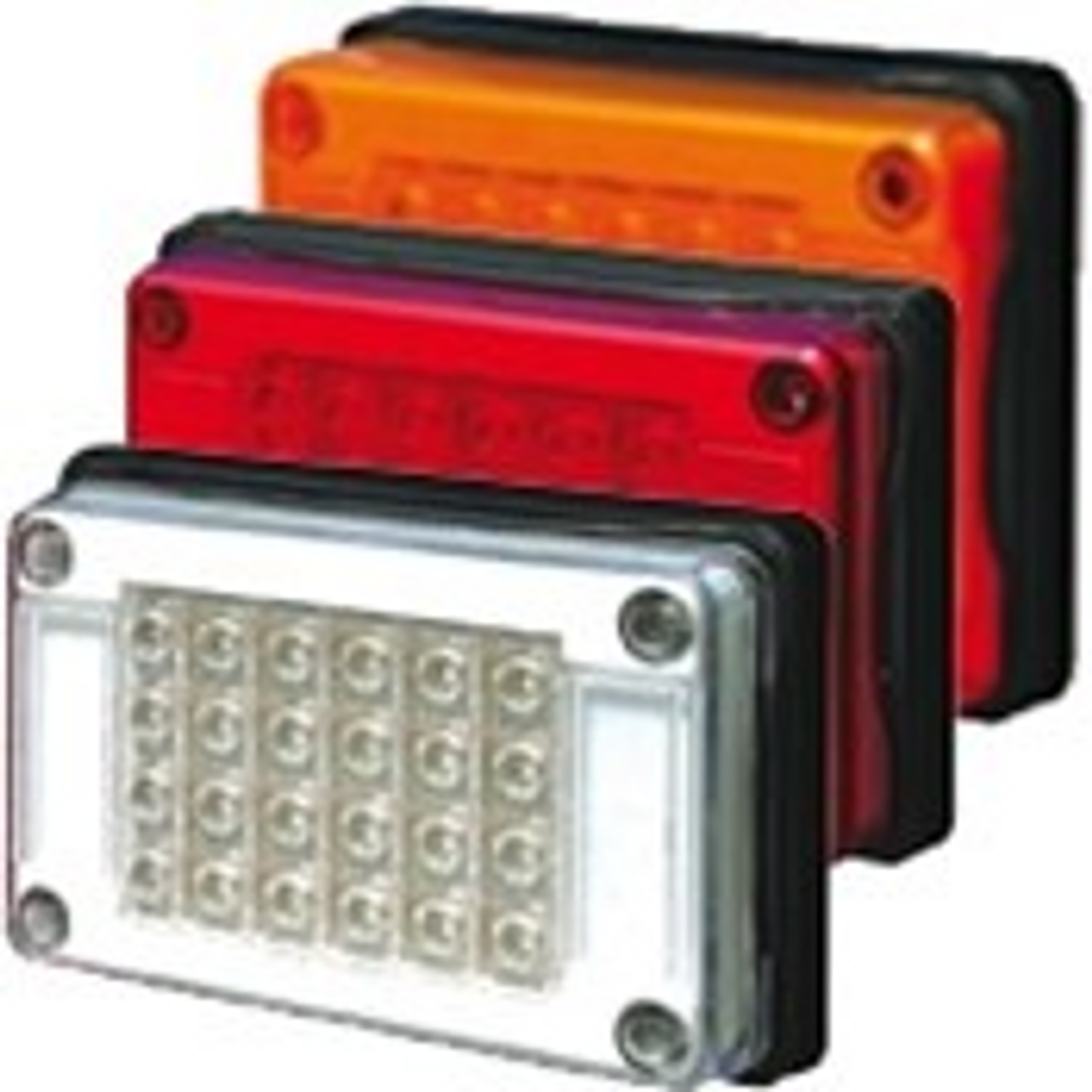

Stop Tail & Indicator Light with Built in Reflector BR601 Jumbo Series.ROADVISION’s BR601 Series LED jumbo signal lamps are an all-in-one quality solution for heavy duty trucks and trailers.Caravan and Confined Area Friendly.- With ROADVISION it’s FIT and FORGET.
- Jumbo LED signal lamps
- Multi-volt 10-30V DC input & low current draw
- Brighter than conventional incandescent systems
- 100,000 hour LED life span with solid state technology
- Maintenance free
- High impact ABS housing & sealed polycarbonate lens
- Water and dust proof
- Pre-wired with 300mm of sheathed tinned copper cable
- Simple surface mount design
- Retro-fits in place of existing jumbo lamps
- ADR/ECE approved for all functions
| BR601AR | |
| Input Voltage | 10-30 Volt DC |
| Lamp Functions | Stop, Tail & Indicator |
| Lens Colour | Red & Amber |
| No. of LED's | 48 LED's |
| Current Draw Amps | 0.1/0.5A @ 13.8V DC |
| Housing Construction | High Impact ABS |
| Lens Construction | Polycarbonate |
| Dimensions | 402 x 132 x 41mm |
| Mounting Type | Surface Mount |
| Mounting Hole Cut Out | 300 mm & 124mm |
| Cable Length | 300mm Tinned Copper |
| IP Rating | Weather Proof |
| Warranty | 5 Years |
| Approvals | Stop - CRN 46121, Tail - CRN 46120 Ind - CRN 46082 |
Fitting – Surface Mount
A Load Resistor may be required for your IndicatorPart No: BR12 Link: https://ultimateledlights.com.au/accessories/load-resistor-12-volt-twin-pack-br12/
