Product Description

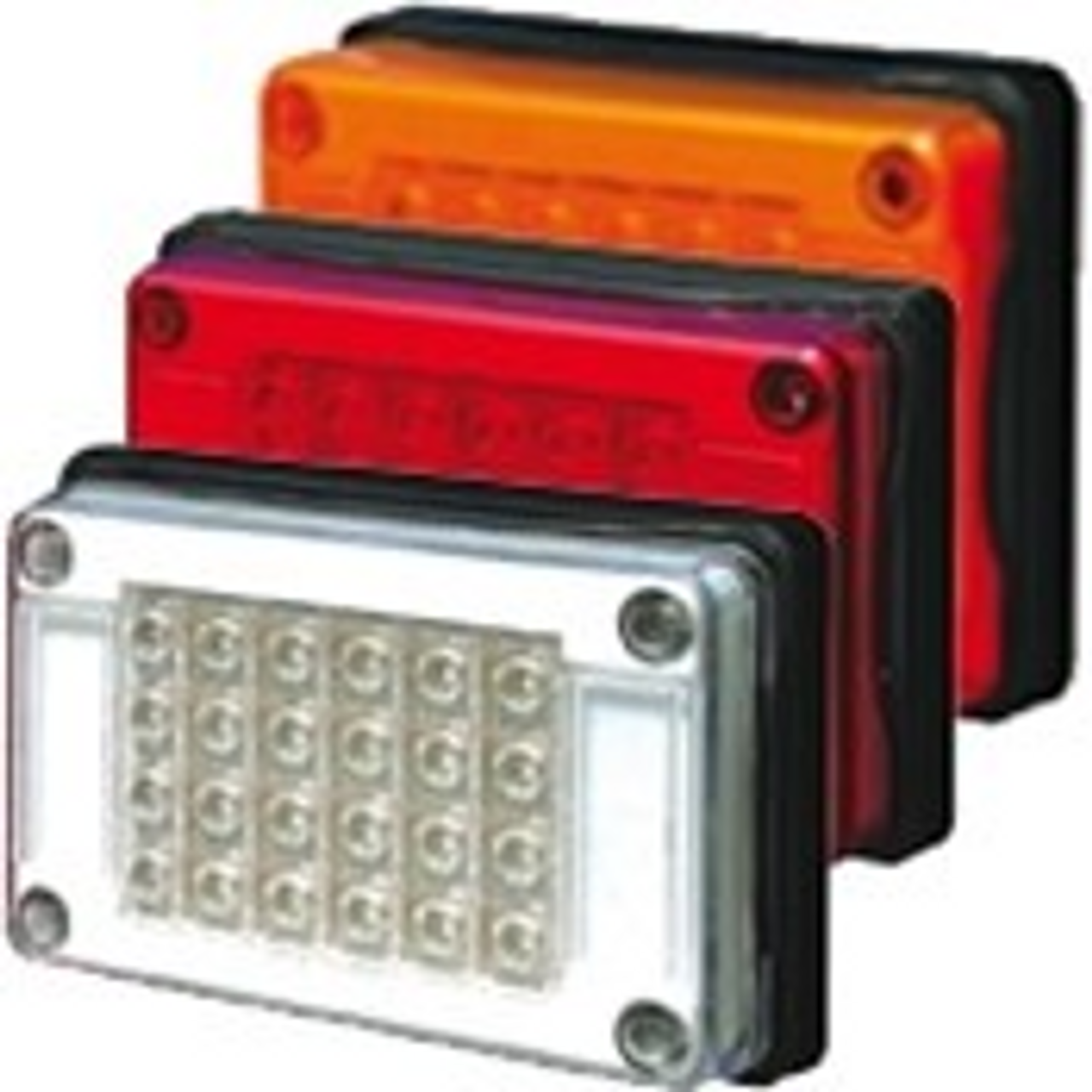

Stop Tail, Indicator & Reverse LED Light with Built in Reflector BR601 Large Jumbo Series.ROADVISION’s BR601 Series LED jumbo signal lamps are an all-in-one quality solution for heavy duty trucks and trailers... This Light can Replace your Narva or Hella Jumbo Light at Half the Price.Caravan and Confined Area FriendlyThis is a single pack.- With ROADVISION it’s FIT and FORGET.
- Jumbo LED signal lamps
- Multi-volt 10-30V DC input & low current draw
- Brighter than conventional incandescent systems
- 100,000 hour LED life span with solid state technology
- Maintenance free
- High impact ABS housing & sealed polycarbonate lens
- Water and dust proof
- Pre-wired with 300mm of sheathed tinned copper cable
- Simple surface mount design
- Retro-fits in place of existing jumbo lamps
- ADR/ECE approved for all functions
|
|
BR601ARW |
| Input Voltage | 10-30 Volt DC |
| Lamp Functions | Stop, Tail, Indicator & Reverse |
| Lens Colour | Red, Amber & Clear |
| No. of LED's | 72 LED's |
| Current Draw Amps | Ind 0.1A S/T 0.1 0.5A Rev 0.2A@ 13.8V DC |
| Housing Construction | High Impact ABS |
| Lens Construction | Polycarbonate |
| Dimensions | 604 x 132 x 41mm |
| Mounting Type | Surface Mount |
| Mounting Hole Cut Out | 501 mm & 325mm |
| Cable Length | 300mm Tinned Copper |
| IP Rating | Weather Proof |
| Warranty | 5 Years |
| Approvals | Stop - CRN 46121, Tail - CRN 46120 Ind - CRN 46082 Rev - CRN 46122 |
