Product Description

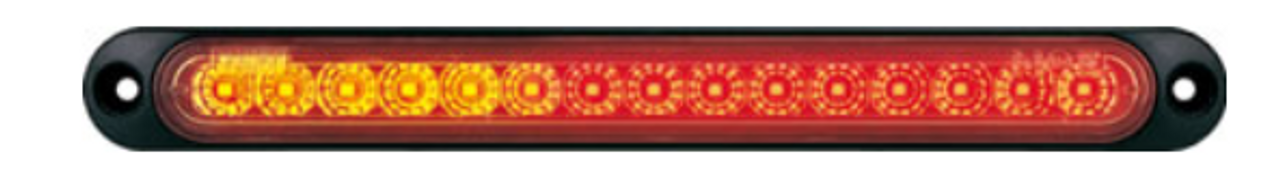

Twin Pack Rear Taillights Slimline, 12v DCBR70 Series LED signal lamps are a versatile ultra-slimline solution!Slimline Combination LED Tail Light, New Style, New Fashion, Extremely Bright and Sexy.This is a twin pack rear taillight kit.- Ultra-slimline LED strip signal lamps
- Multi-volt 12V DC input & low current draw 12 volt systems
- Brighter than conventional incandescent systems
- 100,000 hour LED life span with solid state technology
- Maintenance free
- Sealed polycarbonate lens & high impact ABS housing
- Water Vibration and dust proof
- Pre-wired with 300mm of sheathed tinned copper cable
- Simple surface mount design
- No Cut Outs, Just Drill Your Holes and Fit The Light.
- ADR/ECE approved for all functions
|
Specifications
|

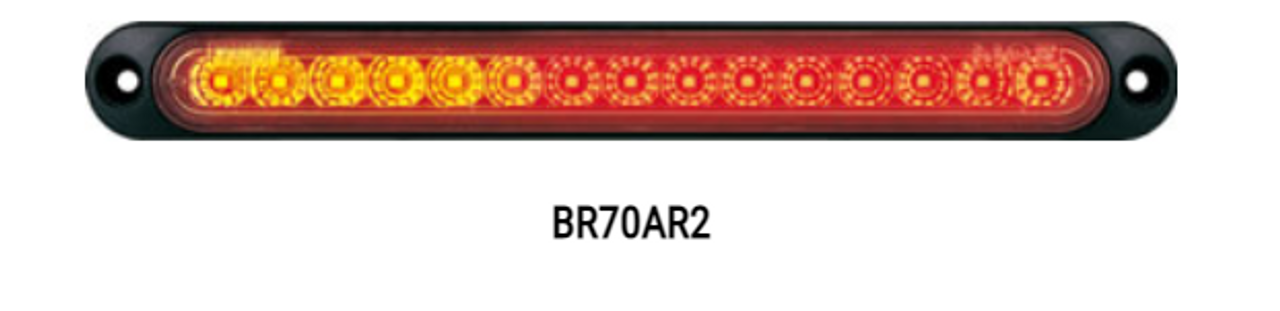

BR70AR2-2 (Twin Pack) |
| Input Voltage | 12 Volt DC |
| Lamp Functions | Stop, Park & Indicator |
| Lens Colour | Amber & Red |
| No. of LED's | 15 LED's each |
|
Current Draw Amps |
S/T 0.15 Amps I 0.1 Amps @ 13.8V DC per light |

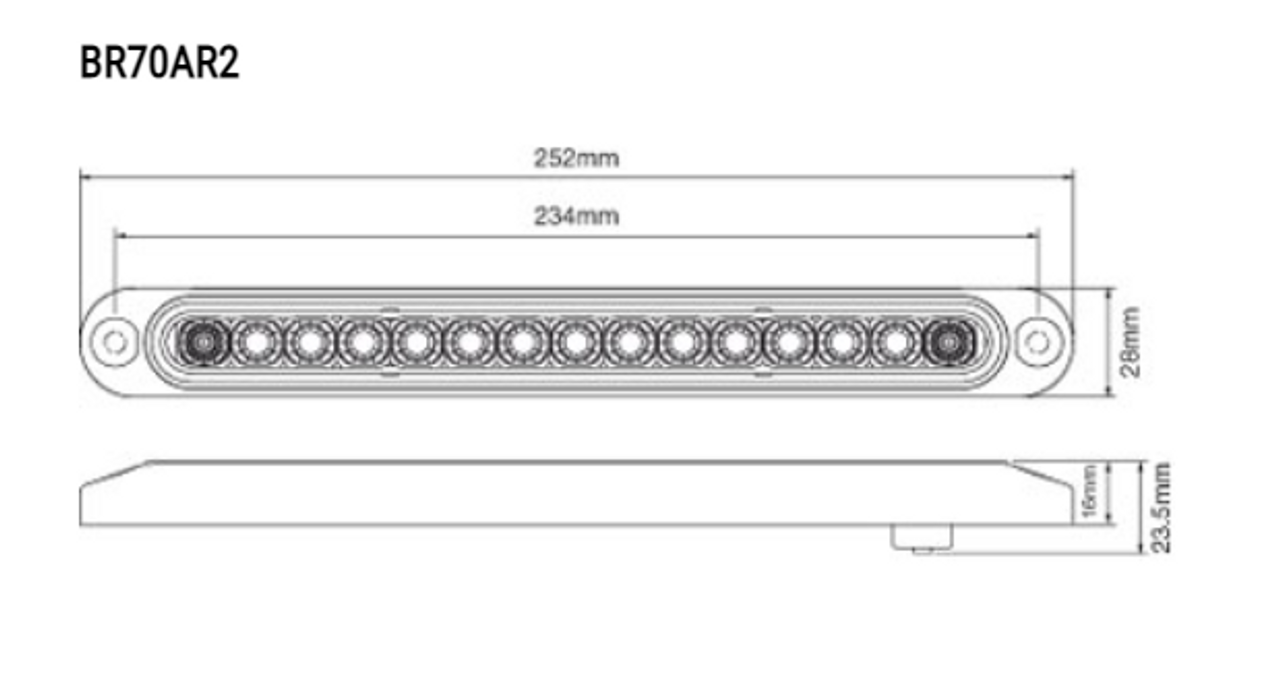

| Dimensions | 252 x 28 x 24mm |
| Mounting Type | Surface Mount |
| Mounting Hole Centre to Centre | 234mm Stud Centres |
| Cable Length | 300mm Tinned Copper with LEDLink Connector |
| Warranty | 5 Year |
| Approvals | Ind – CRN 51785 S/T – CRN 51785Tail – CRN 51787 |
