Product Description

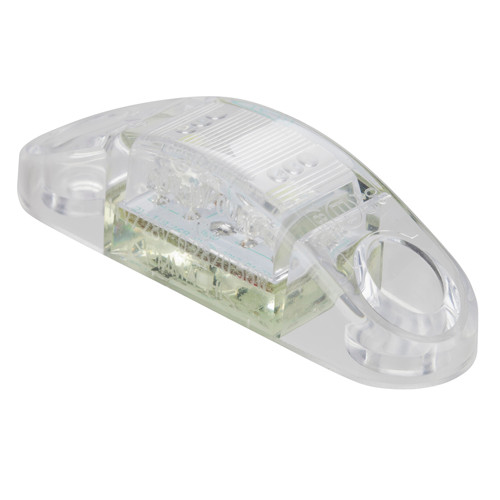

PETERSON’s 1268 Series LED marker lamp range are the complete all-in-one fit and forget solution!
White Front Marker, Clearance Light with Clear LensPeterson’s 1268 Series have everything you could ask for in a marker lamp. Multi-volt, water & dust proof to IP67, fully compliant with ADR & ECE approvals and manufactured to Peterson’s stringent standards, the 1268 Series are built to last a lifetime*.
- Designed easily mounting on any flat horizontal or vertical surface.
- PETERSON, the premium choice in LED lighting!
- American styled LED marker lamp range
- Multi-volt 9-32V input & low current draw
- 100,000 hour LED life span with solid state technology
- Water & dust proof to IP67
- PMMA lens with superior optics
- High impact ABS housing
- Supplied pre-wired with 300mm sheathed cable
- Conventional surface mount design
- Maintenance free
- ADR/ECE approved
| 1268C-MV | |
| Input Voltage | 9-32 Volt DC |
| Lamp Functions | Clearance Front Outline/ Cab Marker Lamp |
| Lens Colour | Clear |
| No of LED's | 2 White LED's |
| Current Draw Amps | 0.03 Amps @ 13.8V DC |
| Housing Construction | High Impact ABS |
| Lens Construction | PMMA |
| Mounting Depth | Surface Mount |
| Mounting Hole Cut Out | 49mm Centres |
| Dimensions | 66 x 19 x 16mm |
| Cable Length | 2m Sheathed |
| Approvals | CRN 38725 |
Accessory - Chrome Bezel Details (This is an extra item)
| Chrome Bezel | B168-10 |
| Bracket Type | Chrome Dress-up Bezel |
| Bracket Construction | ABS |
| Total Dimensions | 100 x 33 x 15mm |
| Mounting Hole Centres | 49mm |
