Product Description

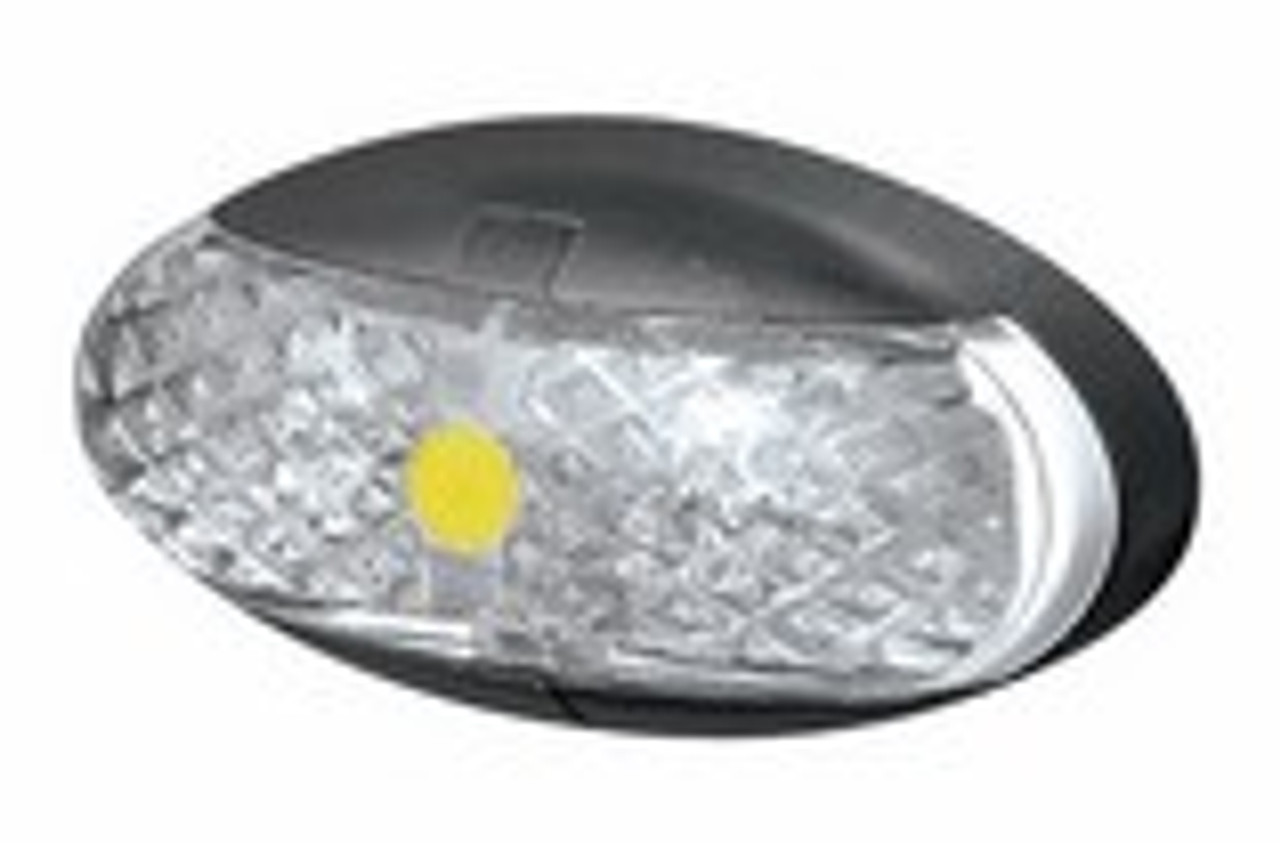

LED Side Marker,Clearance Light - Amber with 2.5 m of CableThis Light can also be mounted as Front Cab Marker and Side Indicator Light BR1 and BR2 Series marker lamps tick all the right boxes.Brighter, safer, stronger, easier to fit, longer lasting and better looking!BR1 Series = 500 mm wiring harnessBR2 Series = 2.5 m wiring harnessBR1 and BR2 Series Lights are the same light, only difference is the length of the wiring harness- FIT and FORGET.
- Multi-volt 10-30V input & low current draw
- Brighter than conventional incandescent systems
- 100,000 hour LED life span with solid state technology
- Maintenance free
- High impact ABS housing & sealed polycarbonate lens
- Water and dust proof
- Vibration resistant
- Supplied pre-wired with 2m of sheathed tinned copper cable
- Compact body allows fitment into tight applications
- Separate clip in lenses and surface mount bases
- Easy 2 wire installation
- ADR/ECE approved for all functions
- Optional chrome (EL12CB) and white (EL12WB) dress-up bracket
- Available in single or bulk packs
| BR2A | |
| Input Voltage | 10-30 Volt DC |
| Lamp Functions | Side Clearance, Front Outline/Cab & Side Indicator Marker Lamp |
| No. of LED's | 4 Amber LED's |
| Current Draw Amps | 0.05 Amps @ 13.8V DC |
| Housing Construction | High Impact ABS |
| Lens Construction | Polycarbonate |
| Lamp Dimensions | 60 x 30 x 22mm |
| Mounting Depth | Surface/Bracket Mount |
| Mounting Hole Cut Out | 29mm Centres |
| Cable ength | 2.5m Tinned Copper |
| IP Rating | Weather Proof |
| Warranty | 5 Years |
| Cable Length | 2.5 m Tinned Copper |
| Approvals | CRN 46387 |
