Product Description

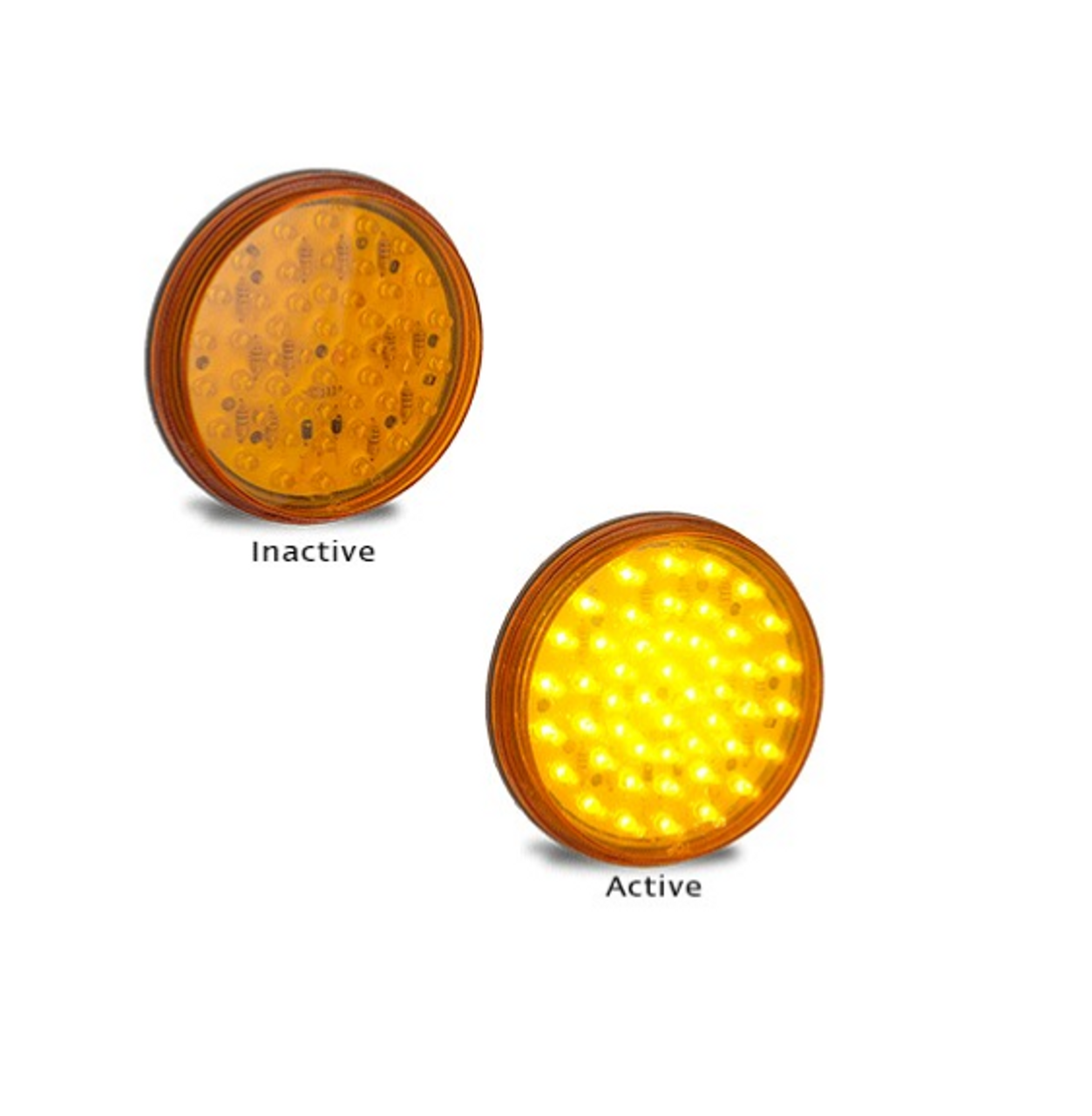

Arrow Board Amber. 12v. 500cd Centre Brightness. LED Auto Lamps.5526A.Single Pack.| Part Number | 5526A |
| Function | Arrow Board |
| Voltage | 12v DC |
| Amp Draw | 0.43a @ 13.8v |
| Lens Colour | Amber |
| LED Colour | Amber |
| LED No's | 48 |
| Dimension | 109mm Round x 10mm |
| Warranty | 5 year |
| Wiring | Part No 55062 |
| Lights per Pack | 1 |
| Water Rating | IP67 |
| ADR |
Fitting Instructions

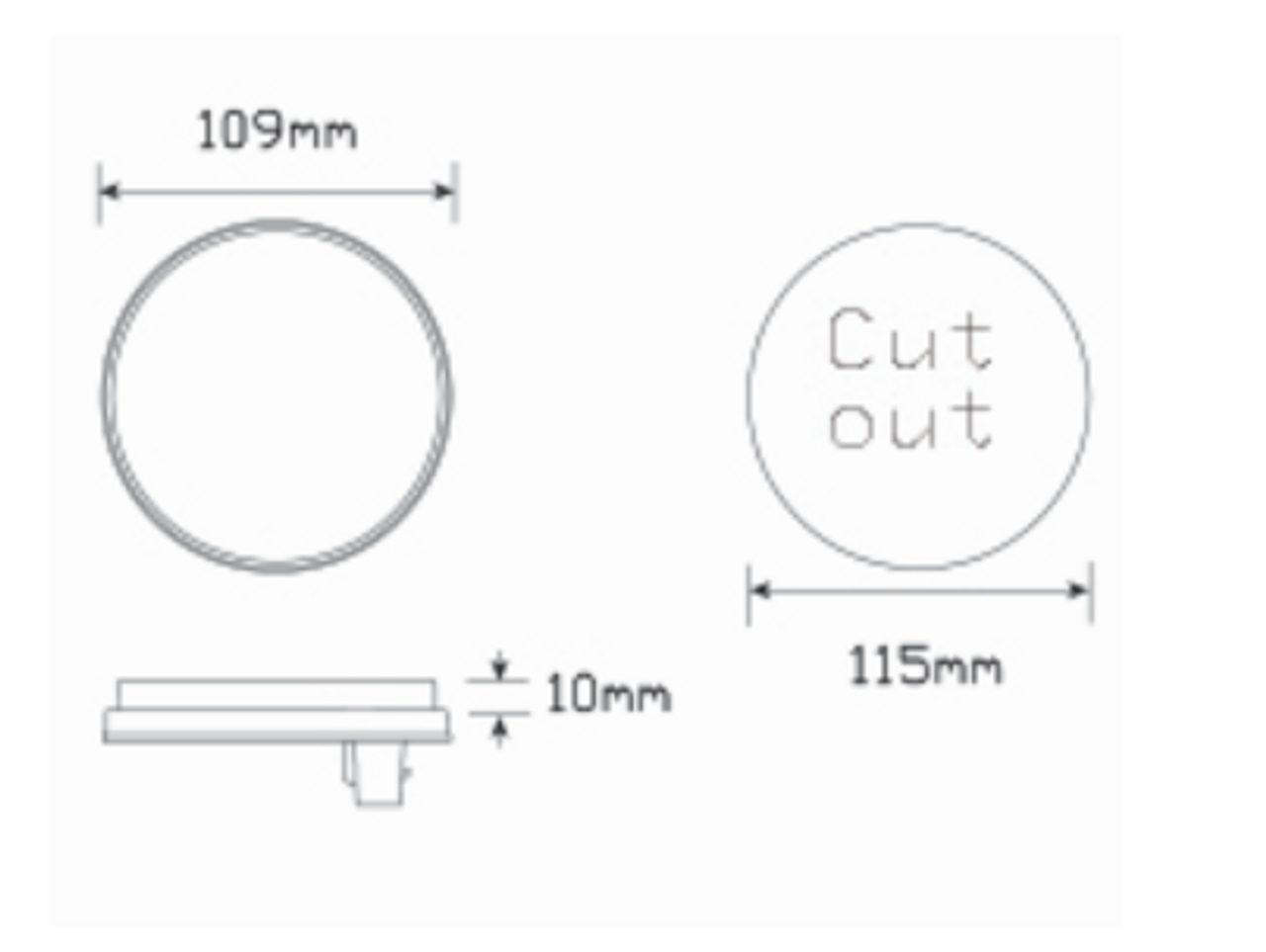

Retro fit to existing 4 inch lamps. If new installation fit grommet or flange into cutout (Cut out 115mm round) plug wire into lamp and run through back then push into grommet/flange. Please refer to ADR 13/00 for mounting instructions.Accessories:
Rubber Grommet - 53101 Cable - 55062
