Product Description

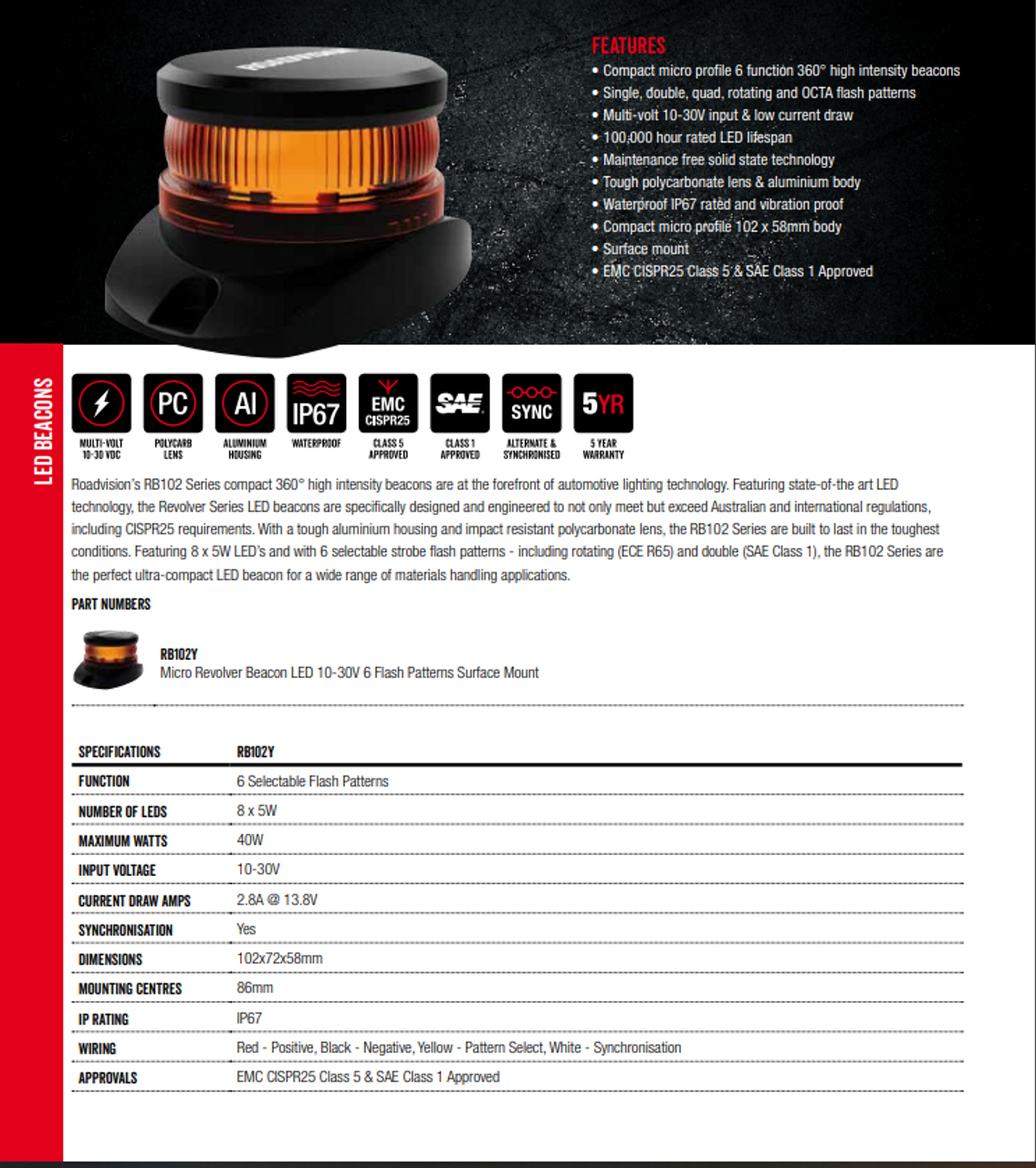

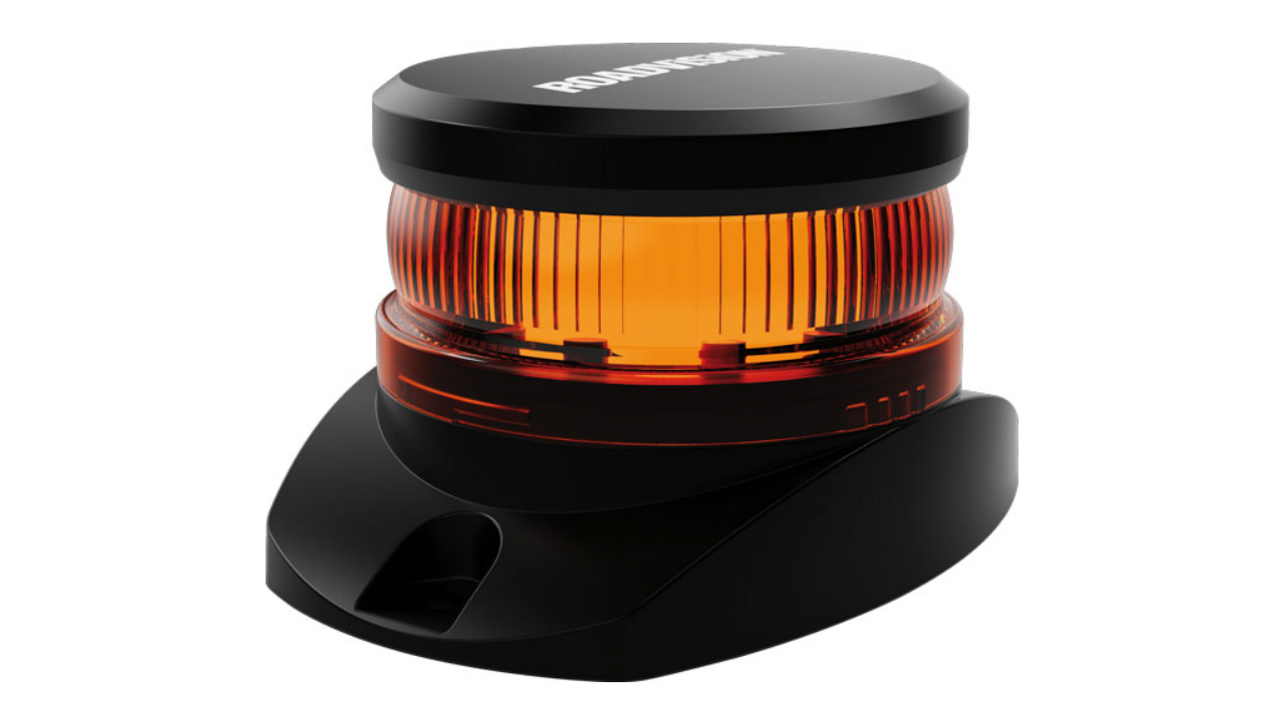

Roadvision’s RB102 Series compact 360° high intensity beacons are at the forefront of automotive lighting technology. Featuring state-of-the art LED technology, the Revolver Series LED beacons are specifically designed and engineered to not only meet but exceed Australian and international regulations, including CISPR25 requirements. With a tough aluminium housing and impact resistant polycarbonate lens, the RB102 Series are built to last in the toughest conditions. Featuring 8 x 5W LED’s and with 6 selectable strobe flash patterns – including rotating (ECE R65) and double (SAE Class 1), the RB102 Series are the perfect ultra-compact LED beacon for a wide range of materials handling applications.RANGE FEATURES
- Compact micro profile 6 function 360° high intensity beacons
- Single, double, quad, rotating and OCTA flash patterns
- Multi-volt 10-30V input & low current draw
- 100,000 hour rated LED lifespan
- Maintenance free solid state technology
- Tough polycarbonate lens & aluminium body
- Waterproof IP67 rated and vibration proof
- Compact micro profile 102 x 58mm body
Surface mount - EMC CISPR25 Class 5 & SAE Class 1 Approved
| Part Number | RB102Y |
| Description | Micro Revolver Beacon LED 10-30V 6 Flash Patterns Surface Mount |
| Function | 6 Selectable Flash Patterns |
| Number of LEDs | 8 x 5W |
| Maximum Watts | 40W |
| Input Voltage | 10-30V |
| Current Draw Amps | 0.5A @ 13.8V |
| Synchronisation | Yes |

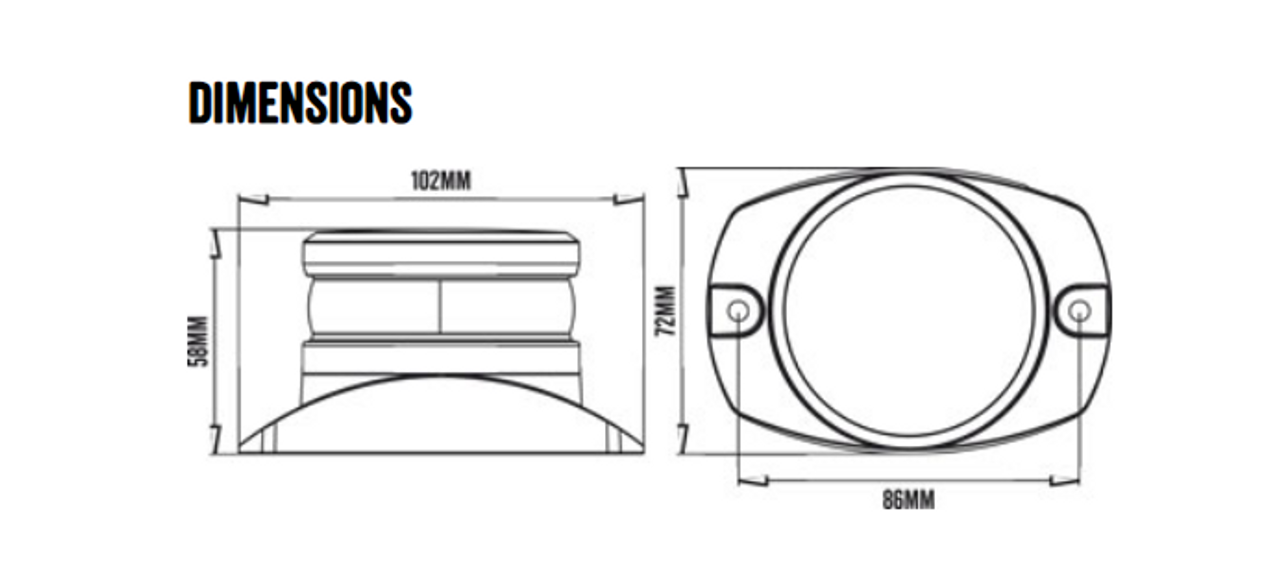

| Dimensions | 102x72x58mm |
| Mounting Centres | 86mm |
| IP Rating | IP67 |

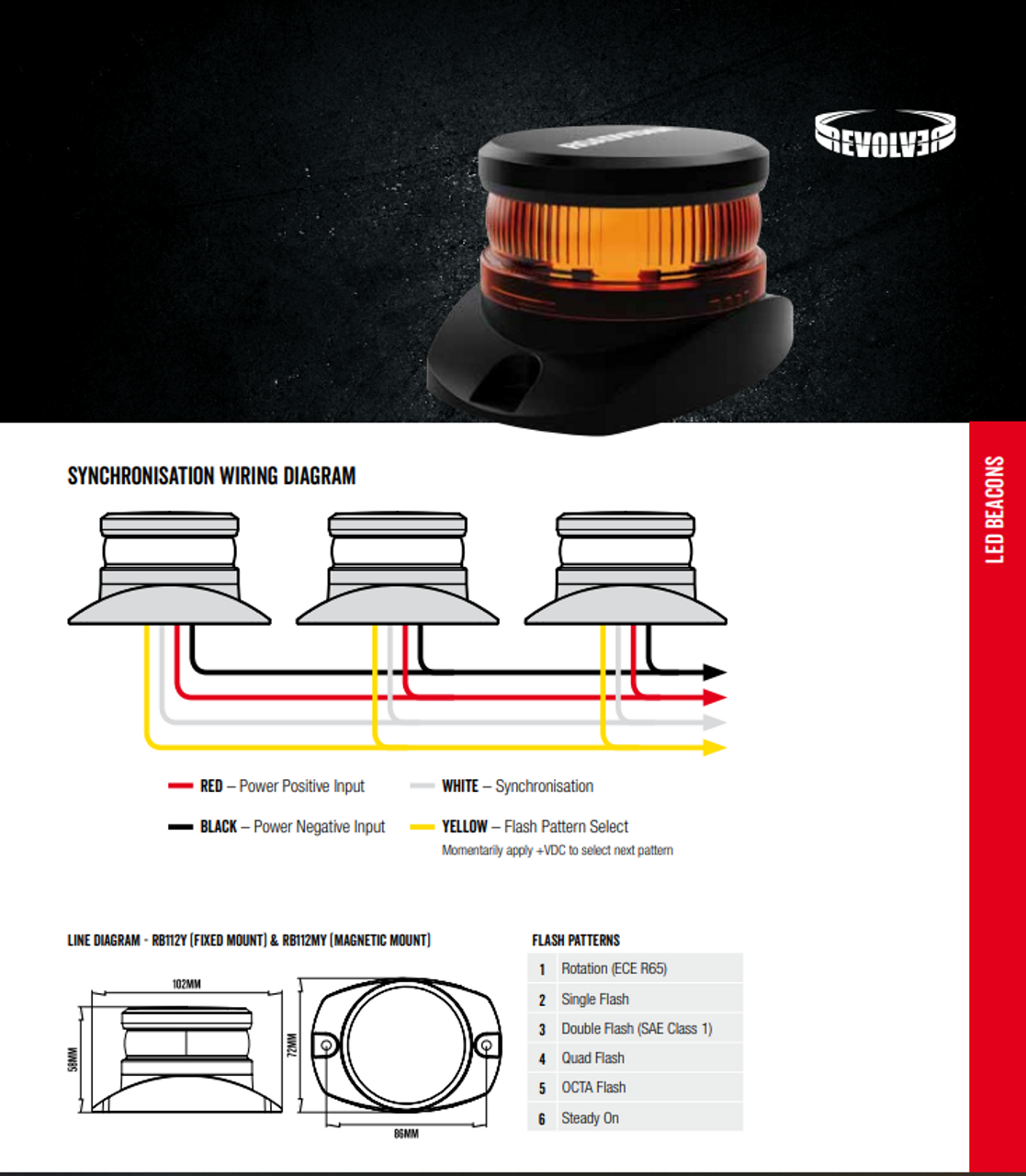

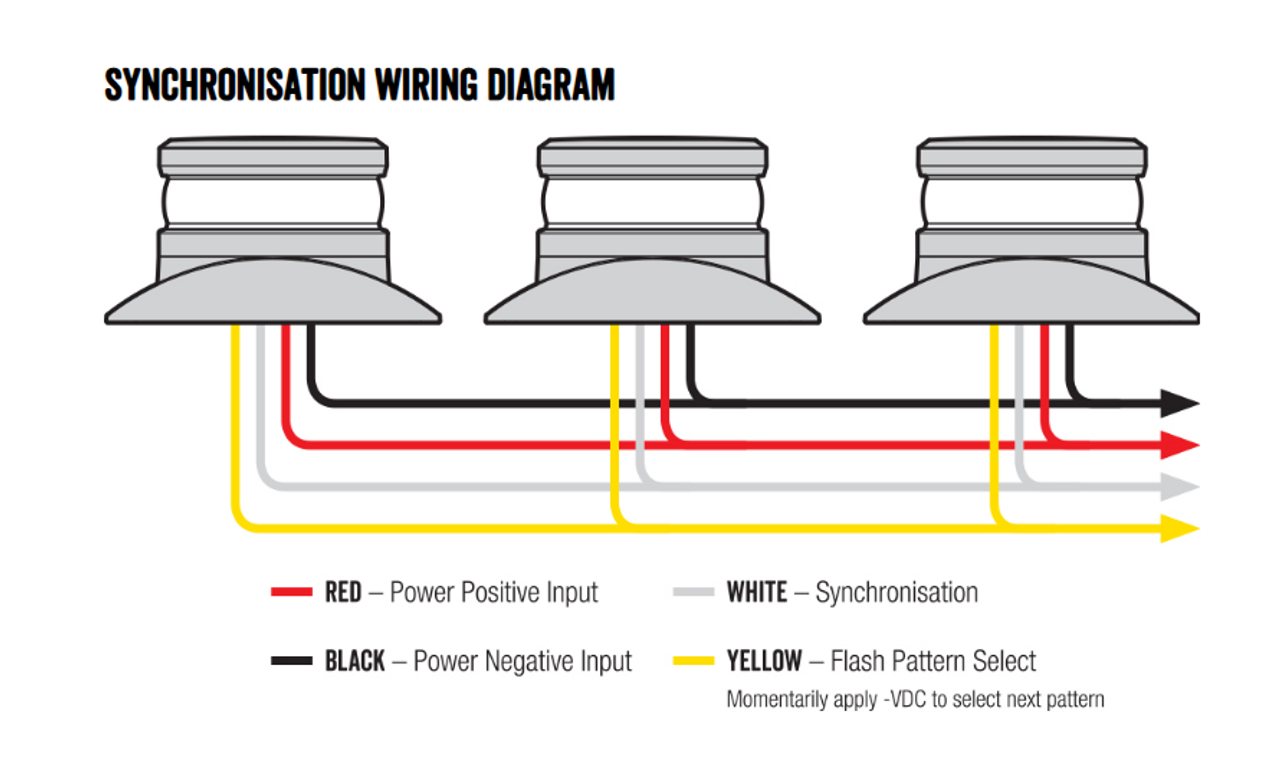

| Wiring | Red - Positive |
| Black - Negative | |
| Yellow - Pattern Select | |
| White - Synchronisation | |
| Approvals | EMC CISPR25 Class 5 |
| SAE Class 1 |
Exceeds Australian and International Regulations.
FLASH PATTERNS
- Rotation (ECE R65)
- Single Flash
- Double Flash (SAE Class 1)
- Quad Flash
- OCTA Flash
- Steady On
