Product Description

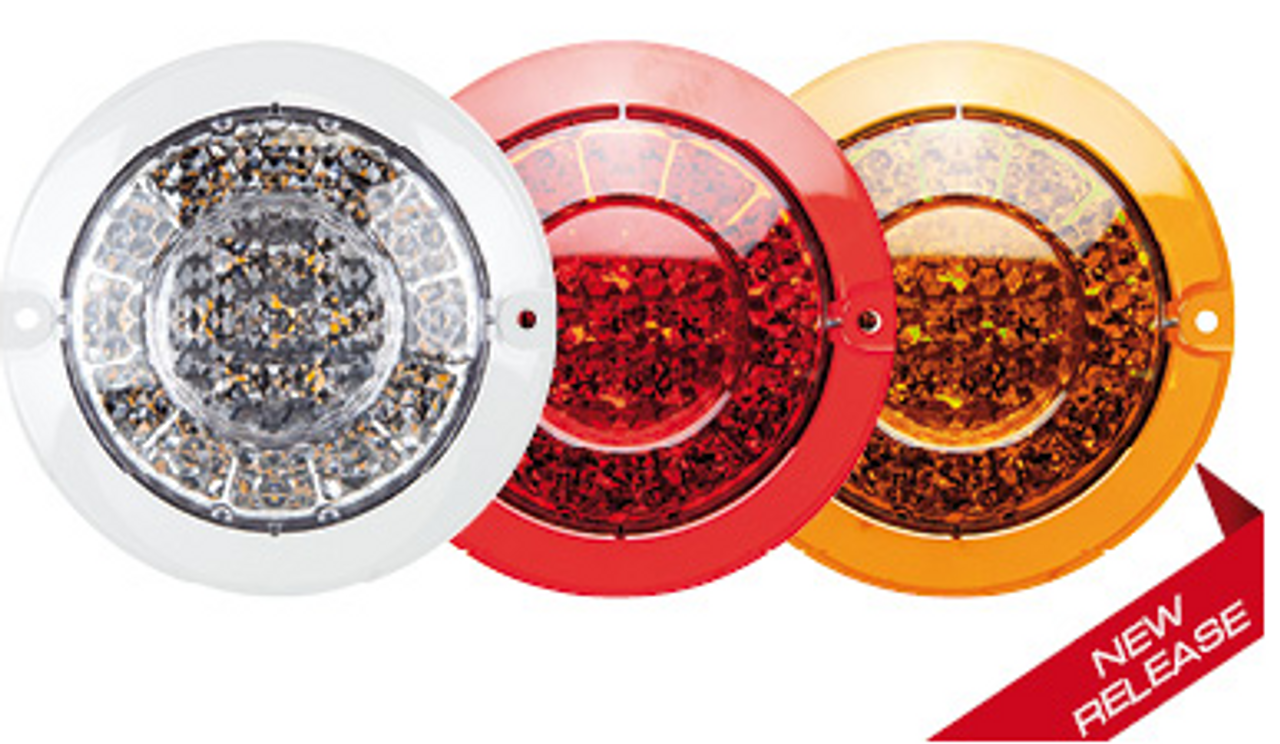

BR170 Series Round LED signal lamps are a versatile stand alone or combination lamp solution!Stop, Tail LED Light - Red LensWith the ROADVISION BR170 Series, it’s FIT and FORGET.- Multi-Volt 10-30V DC input & low current draw
- Brighter than conventional incandescent systems
- 100,000 hour LED life span with solid state technology
- Maintenance free
- Sealed polycarbonate lens & housing
- Water and dust proof
- Supplied pre-wired with 300mm of sheathed tinned copper cable
- Flush recessed mount design
- Retro reflector integrated into BR170RR
- Available in clear or coloured lenses
- ADR/ECE approved for all functions
- 5 year warranty
|
|
BR170R |
| Input Voltage | 10-30 Volt DC |
| Lamp Functions | Stop, Tail |
| Lens Colour | Red |
| No. of LED's | 19 LED's |
| Current Draw Amps | 0.05 Amps/ 0.05 Amps @ 13.8V DC |
| Housing Construction | Polycarbonate |
| Lens Construction | Polycarbonate |
| Dimensions | 134 x 32.8mm |
| Mounting Type | Recessed Mount |
| Mounting Hole Cut Out | 102mm |
| Cable Length | 300mm Tinned Copper |
| Approvals | Stop- CRN 46766 |
| Tail- CRN 46748 |
