Product Description

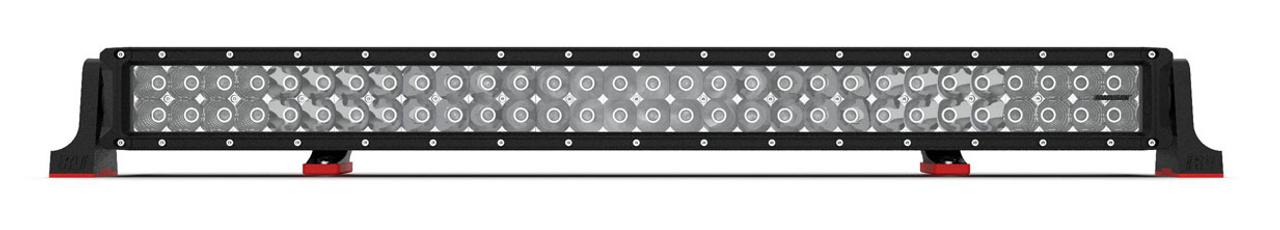

The Roadvision DC2 Series are the next generation in dual row LED light bars.50 Inch Dual Row Light Bar. 288 Watts. The DC2 Series deliver brute power and intense light output with a perfect match of advanced optical design and 3W Osram Hi-Lux LEDs. Featuring the latest soft start, PWM dimming and advanced thermal management technology from Roadvision, the DC2 Series is available in combination beam patterns from 8” to 50” providing a perfect mix of forward penetration and roadside illumination. Supplied with both low profile adjustable slide mounts and Roadvision’s new 9 position adjustable anti-vibration mounting system. The DC2 Series also features a new ultra slim 65mm deep housing providing greater mounting flexibility. The DC2 Series by Roadvision, brute power from the biggest bars in our line-up.RANGE FEATURES
- DC2 Series dual row LED bar lamps produce up to 25920lm of instant light output

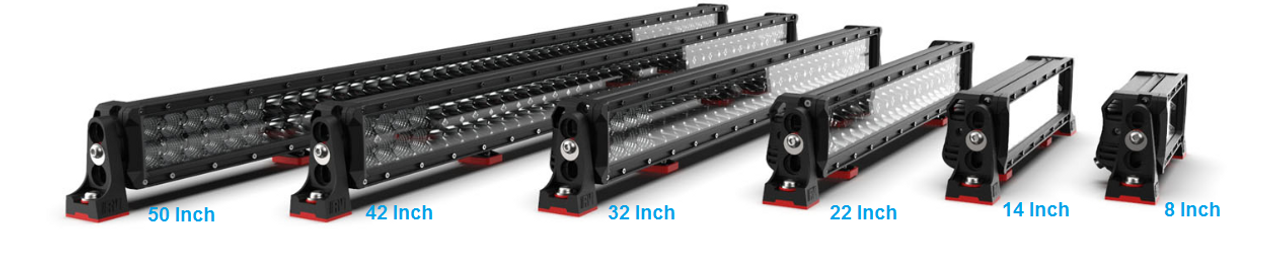

- Available in 8” to 50” models
- 3W Osram Hi-Lux LED’s produce super white light close to daylight
- Multi-volt 10-30V DC input & super low current draw
- 50,000 hour LED lifespan with solid state technology
- Soft start, PWM dimmable & advanced thermal management technology
- Light weight tough die-cast aluminium housing & polycarbonate lens
- Water & dust proof IP67 rated
- Simple 2 wire installation with Deutsch/ATP plug & optional plug & play dimming controller

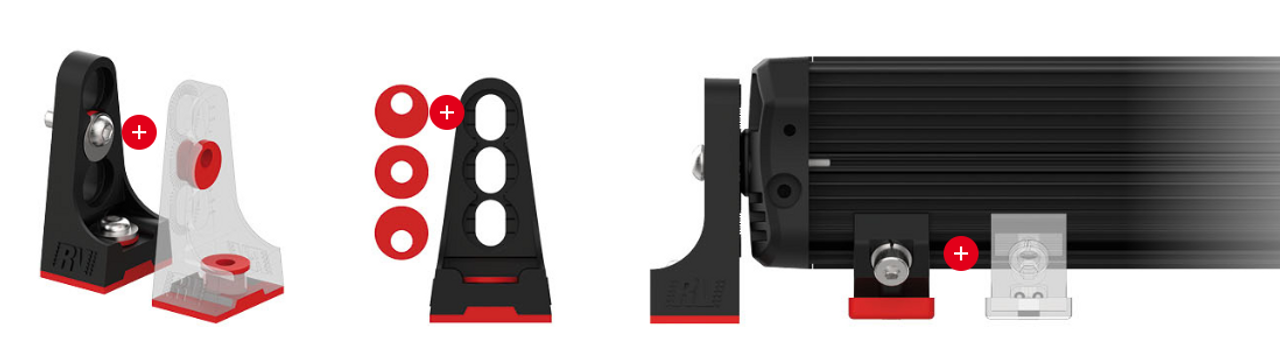

- 9 position adjustable anti-vibration end mount system & low profile slide mounts
- Over/under voltage, reverse polarity protection & EMI/EMC radio interference approved
- Warranty - 7 Years
| Part Number | RBL5500C |
| Description | DC2 Series 50" Bar 120 LED |
| Beam Type | Combination Beam |
| Lumens Light Output (Effective) | 25920lm |

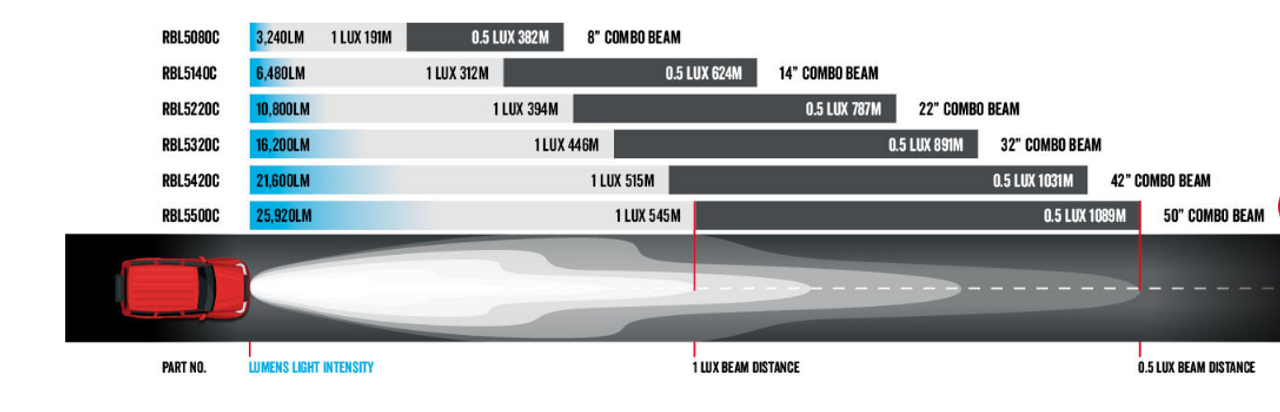

| Beam Distance | 1089m |
| Total Watts | 288 Watts |
| Light Source | 120 x 3 Watt Osram LED's |
| Voltage Input | 10-30V DC |
| Current Draw Amps | 14.1A @ 13.8V |

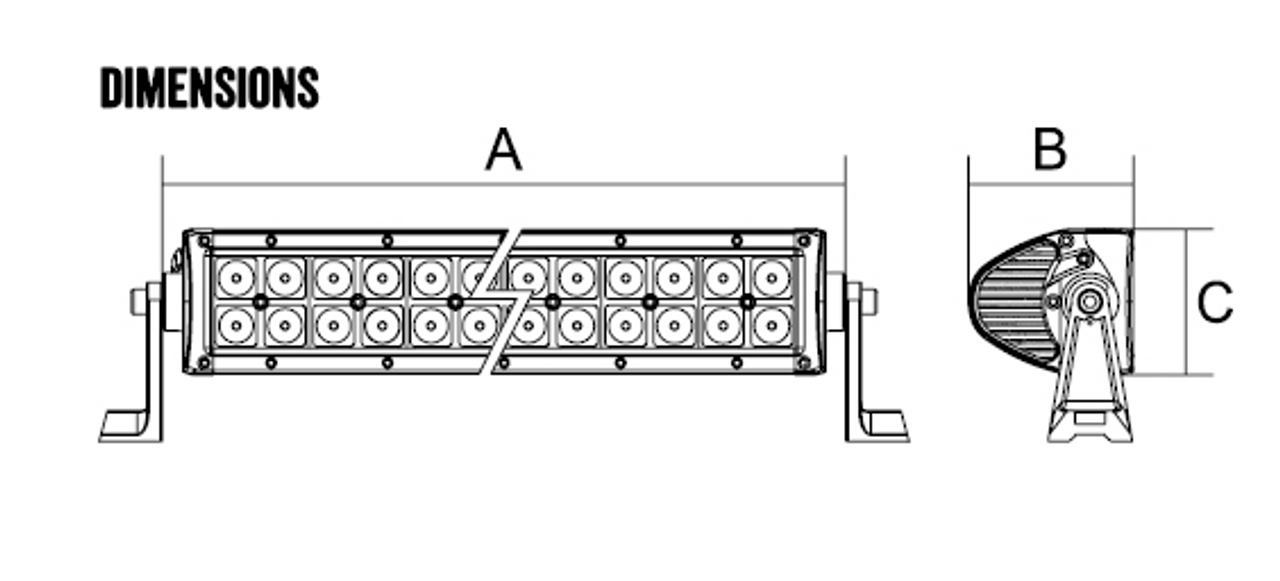

| Dimensions AxBxC | 1273 x 65 x 78.5mm |
| Bar Length | 50" (1273mm) |
| Wiring | 2 Pin Deutsch Plug |
| Lux @ 10m | 2966 Lux |
| Meters @ 1 Lux | 545m |
| Meters @ 0.5 Lux | 1089m |
