Product Description
Compact LED Combination Tail Light with Reverse, Reflector and Mounting Bracket.Sold in Single Packs.- Brighter than conventional incandescent lights
- 100,000 hours LED life span with solid state technology
- Maintenance free
- Tough Polycarbonate lens and housing
- Weather and dust proof
- Supplied pre-wired - 300mm
- LEDLink harness plug
- Compact body to allow fitment into tight areas
- Removable mounting bracket to suit any mounting application
- Ideal for Utes, trailers and forklifts
| Compact Tail Lamp | BR230ARW |
| Current Draw Amps | Ind - 0.05A, S/T - 0.05/0.05A, Rev - 0.1A @ 13.8v |
| Dimension | 229 x 60 x 32mm |
| Mounting Depth | Surface/Pendant Mount |

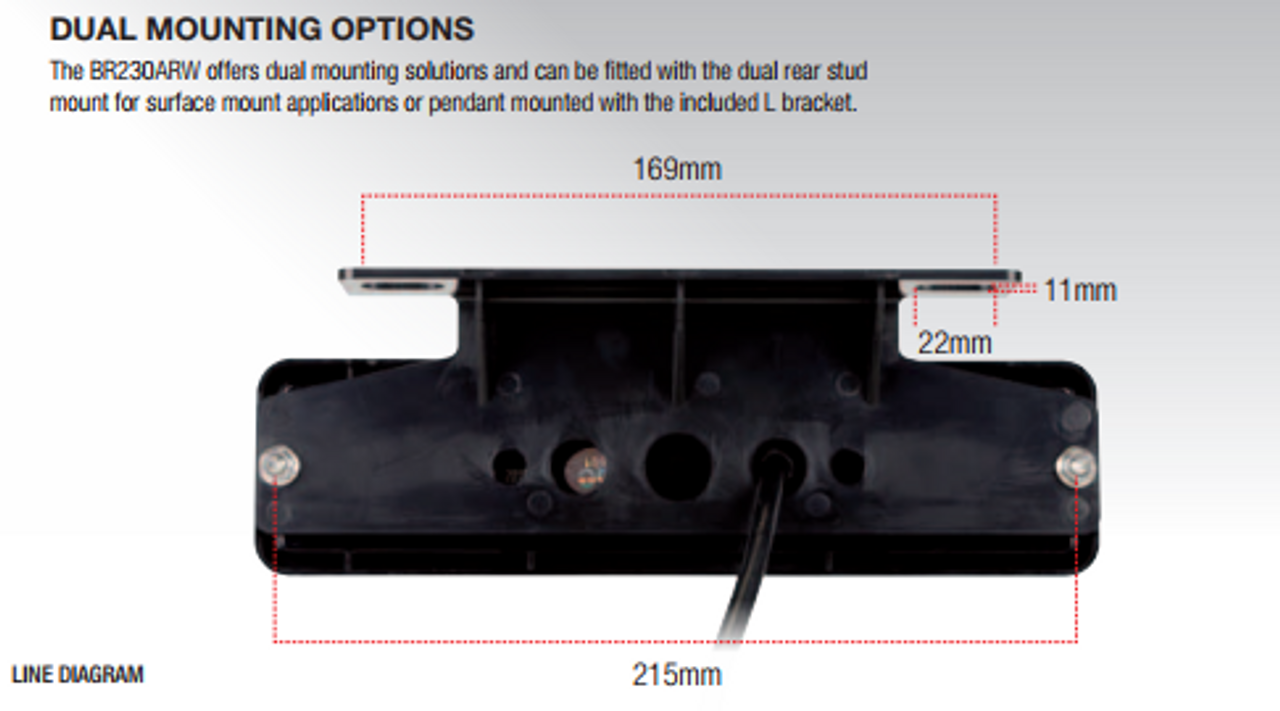

| Mounting Hole / Cut Out | 215 Surface Mount C/C - 125 to 169 Bracket Mount Centres |
| Lamp Functions | Stop, Tail, Indicator & Reverse |
| Number of LED's | Indicator -9. Stop, Tail - 9. Reverse - 9 LED's |
| Cable Length | 300mm Tinned Copper with LEDLink Harness |
| Voltage | Multi-Volt - 12v & 24v DC Systems |
| Housing | Polycarbonate |
| Lens | Polycarbonate |
| IP Rated | Weatherproof |
| Warranty | 5 Years |
| ADR - Approvals | Ind - ECE E4 6R-0124225, S/T - ECE E4 7R-0124225. Rev - ECE E4 23R-0124225. Ref - ECE E4 3R-023771 |
