Product Description
FEATURES

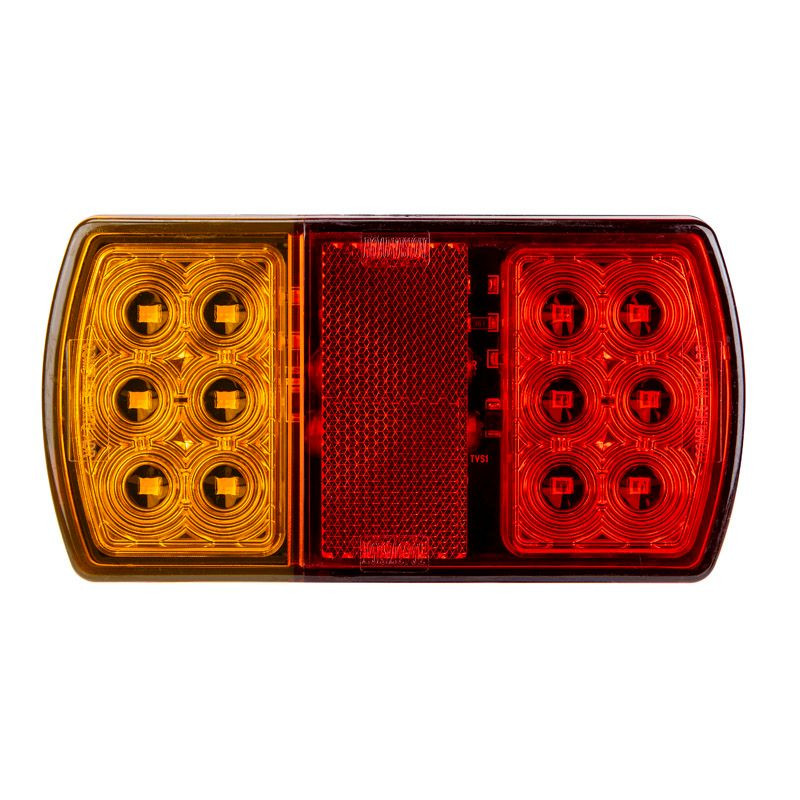

- Compact LED combination lamp
- 10-30V DC input & low current draw
- 100,000 hour rated LED lifespan with solid state technology
- Water & dust proof (submersible)
- Sealed polycarbonate lens & housing
- Integrated reflector & optional licence plate lamp
- Pre-wired with 300mm sheathed tinned copper cable
- Easy surface mount stainless steel twin stud installation
- Maintenance free
- ADR/ECE approved for all functions
| Part Number | BR207MV |
|---|---|
| Description | Rect. Stop/Tail/Ind/Ref |
| Functions | Stop/Tail & Indicator |
| Voltage Input | Multi-Volt 10-30V DC |
| Number of LED's | Indicator - 6 LED's Stop/Tail - 6 LED's |
| Current Draw Amps | Ind - 0.09A @ 13.8V S/T - 0.09/0.02A @ 13.8V |

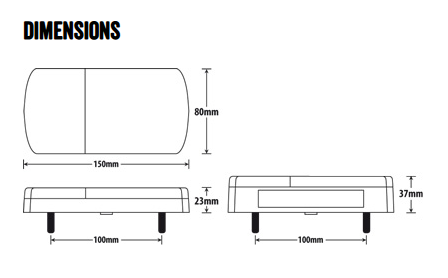

| Dimensions AxBxC | 150x80x37mm |
| Lens Construction | Polycarbonate |
| Housing Construction | Polycarbonate |
| Mounting Hole Centre | 100mm |
| Cable Length | LEDLink Connectors |
| Wiring Colour Codes | Earth - White Stop - Red Rail - Brown Indicator - Green or Yellow |
| ADR Approval | Ind - E4-6R-0115611 S/T - E4-7R-0215611 Ref - E4-3R-0215611 |
| CTA Approval | CTA-060546 |
