Product Description
The Roadvision DCX2 Series Curved Dual Row Light Bar.The next generation in Curved Dual Row LED light bars.22 Inch Dual Row Light Bar. 120 Watts. The DCX2 Series deliver brute power and intense light output with a perfect match of advanced optical design and 3W Osram Hi-Lux LEDs. Featuring the latest soft start, PWM dimming and advanced thermal management technology from Roadvision, the DC2 Series is available in combination beam patterns from 22” to 50” providing a perfect mix of forward penetration and roadside illumination. Supplied with both low profile adjustable slide mounts and Roadvision’s new 9 position adjustable anti-vibration mounting system. The DCX2 Series also features a new ultra slim 65mm deep housing providing greater mounting flexibility. The DCX2 Series by Roadvision, brute power from the biggest curved bars in our line-up.RANGE FEATURES
- DCX2 Series dual row LED bar lamps produce up to 25920lm of instant light output

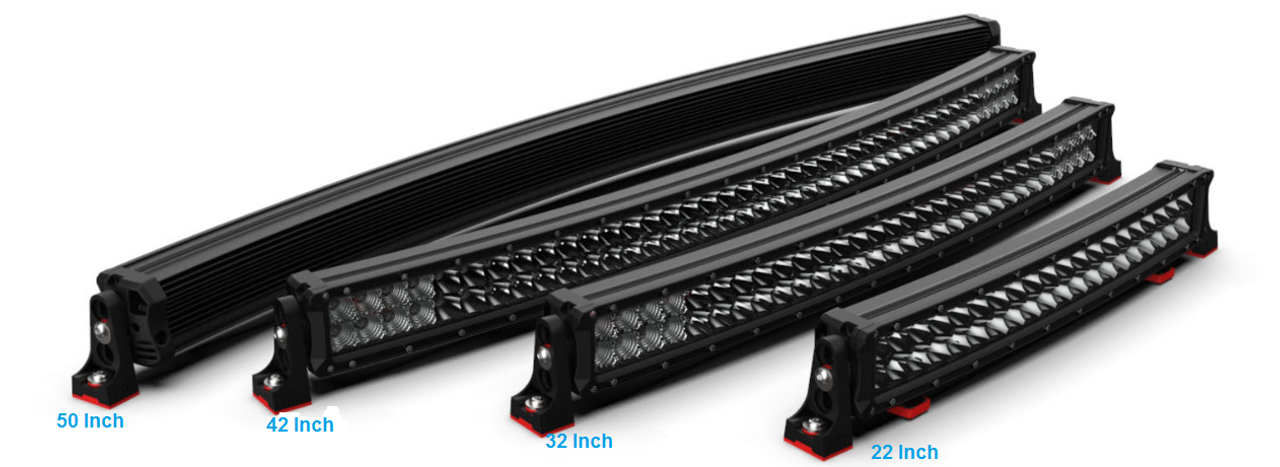

- Available in 22” to 50” models
- 3W Osram Hi-Lux LED’s produce super white light close to daylight
- Multi-volt 10-30V DC input & super low current draw
- 50,000 hour LED lifespan with solid state technology
- Soft start, PWM dimmable & advanced thermal management technology
- Light weight tough die-cast aluminium housing & polycarbonate lens
- Water & dust proof IP67 rated
- Simple 2 wire installation with Deutsch/ATP plug & optional plug & play dimming controller

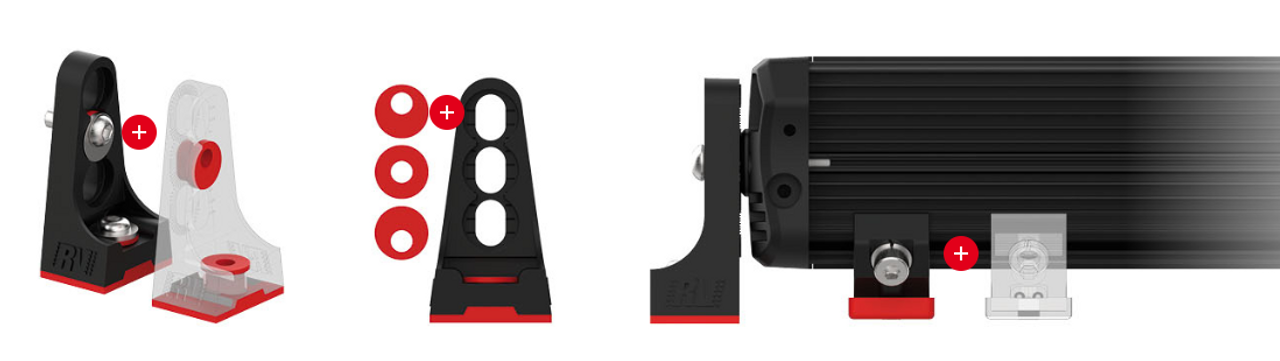

- 9 position adjustable anti-vibration end mount system & low profile slide mounts
- Over/under voltage, reverse polarity protection & EMI/EMC radio interference approved
- Warranty - 7 Years
| Part Number | RBL6220C |

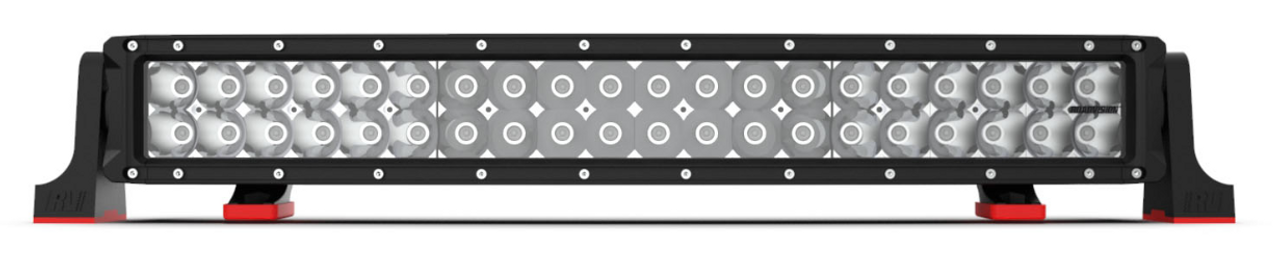

| Description | DCX2 Series 22" Bar 40 LED |
| Beam Type | Combination Beam |
| Lumens Light Output (Effective) | 10800lm |

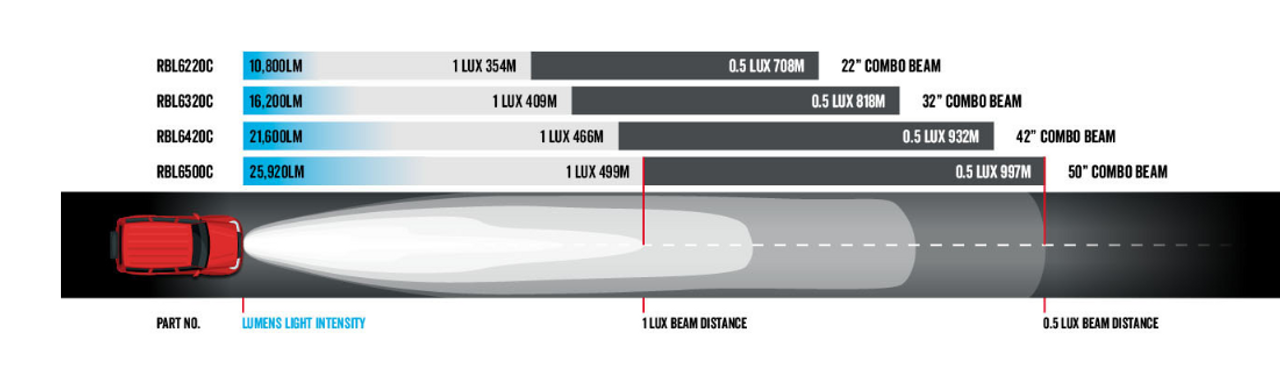

| Beam Distance | 708m |
| Total Watts | 120 Watts |
| Light Source | 40 x 3 Watt Osram LED's |
| Voltage Input | 10-30V DC |
| Current Draw Amps | 6.7A @ 13.8V |
| Dimensions AxBxC | 563 x 65 x 78.5mm |
| Bar Length | 22" (563mm) |
| Wiring | 2 Pin Deutsch Plug |
| Lux @ 10m | 1316 Lux |
| Meters @ 1 Lux | 354m |
| Meters @ 0.5 Lux | 708m |
